GH-302-F-CBS

Part #: GH-302-F-CBS

Equivalent to a (DE-605)

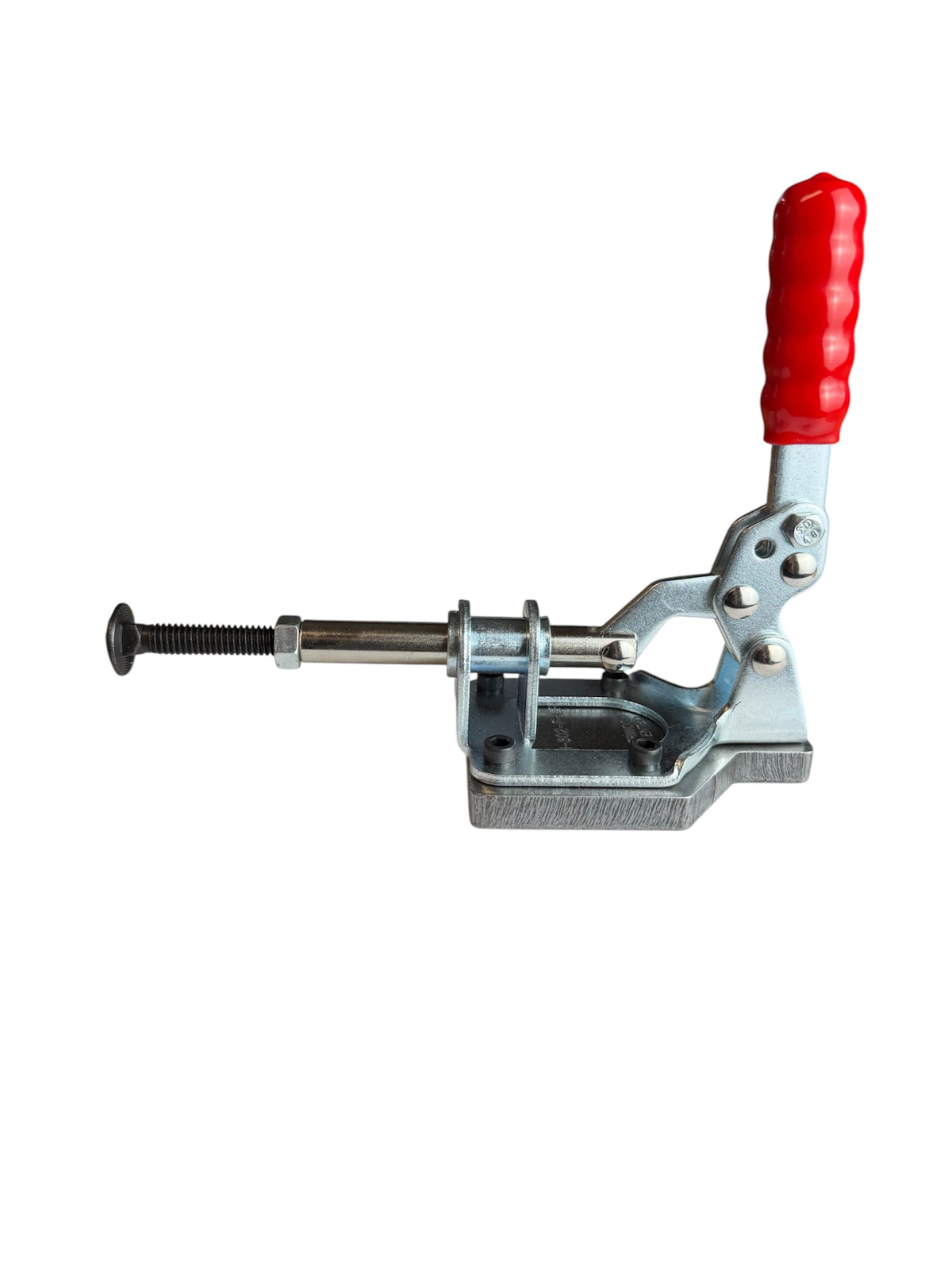

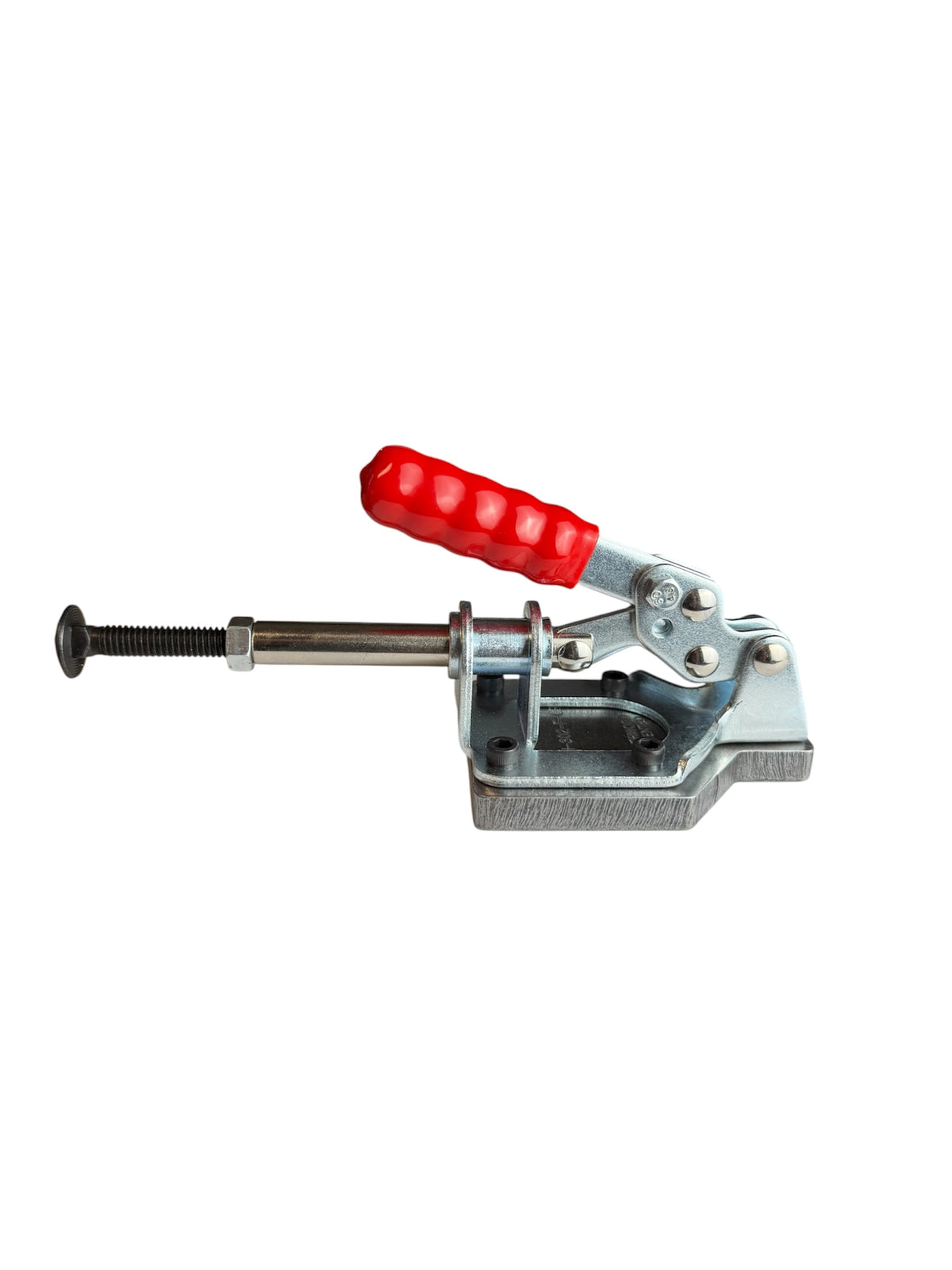

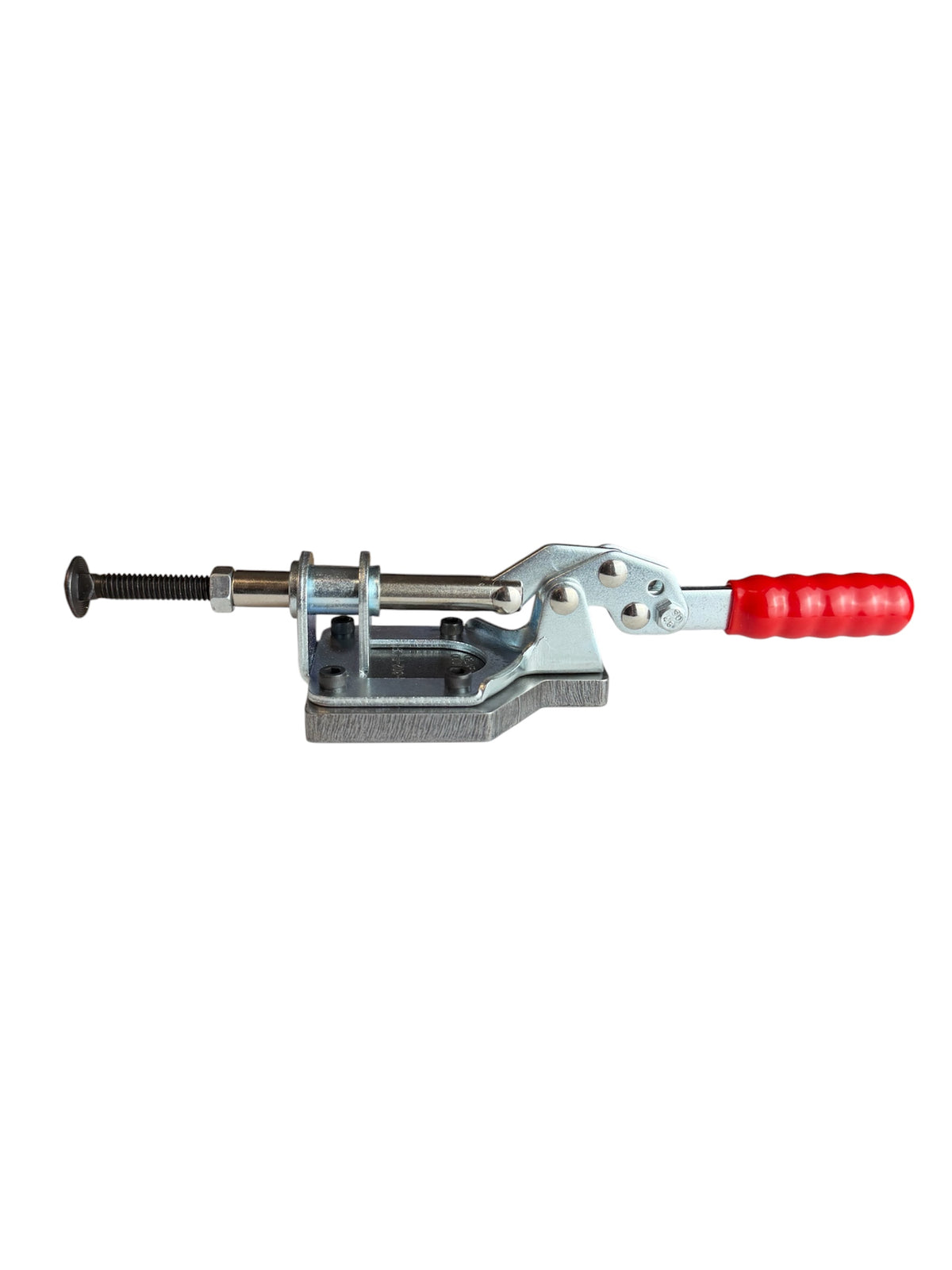

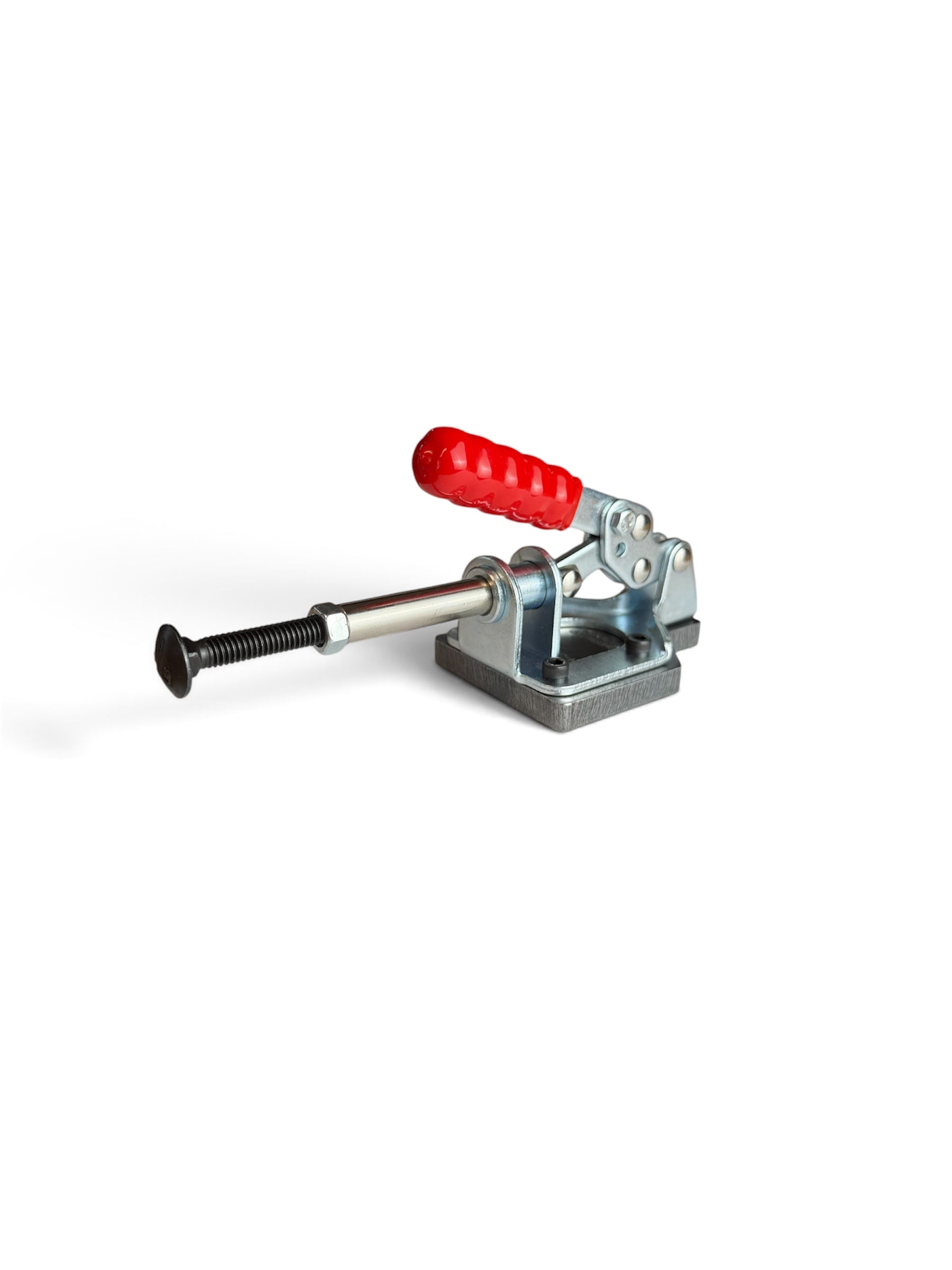

The GH-302-F-CBS Medium Locking Plunger Clamp provides strong, reliable holding power with the added versatility of locking securely in both the extended and retracted positions. With a 300 lb holding capacity and 1-1/4" of plunger travel, this clamp is an excellent choice for welding fixtures, fabrication, woodworking, and other applications requiring quick and dependable part positioning.

Download CAD STP File

Includes:

• Push/Pull Clamp (GH-302-F)
• Mounting Block (GH-302-CR (Steel))
• Carriage Bolt
• Jam Nut

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Weld the mounting block in place
• And you are good to go!

*We find this best to use with parts that get very hot or need to be held with more force.
