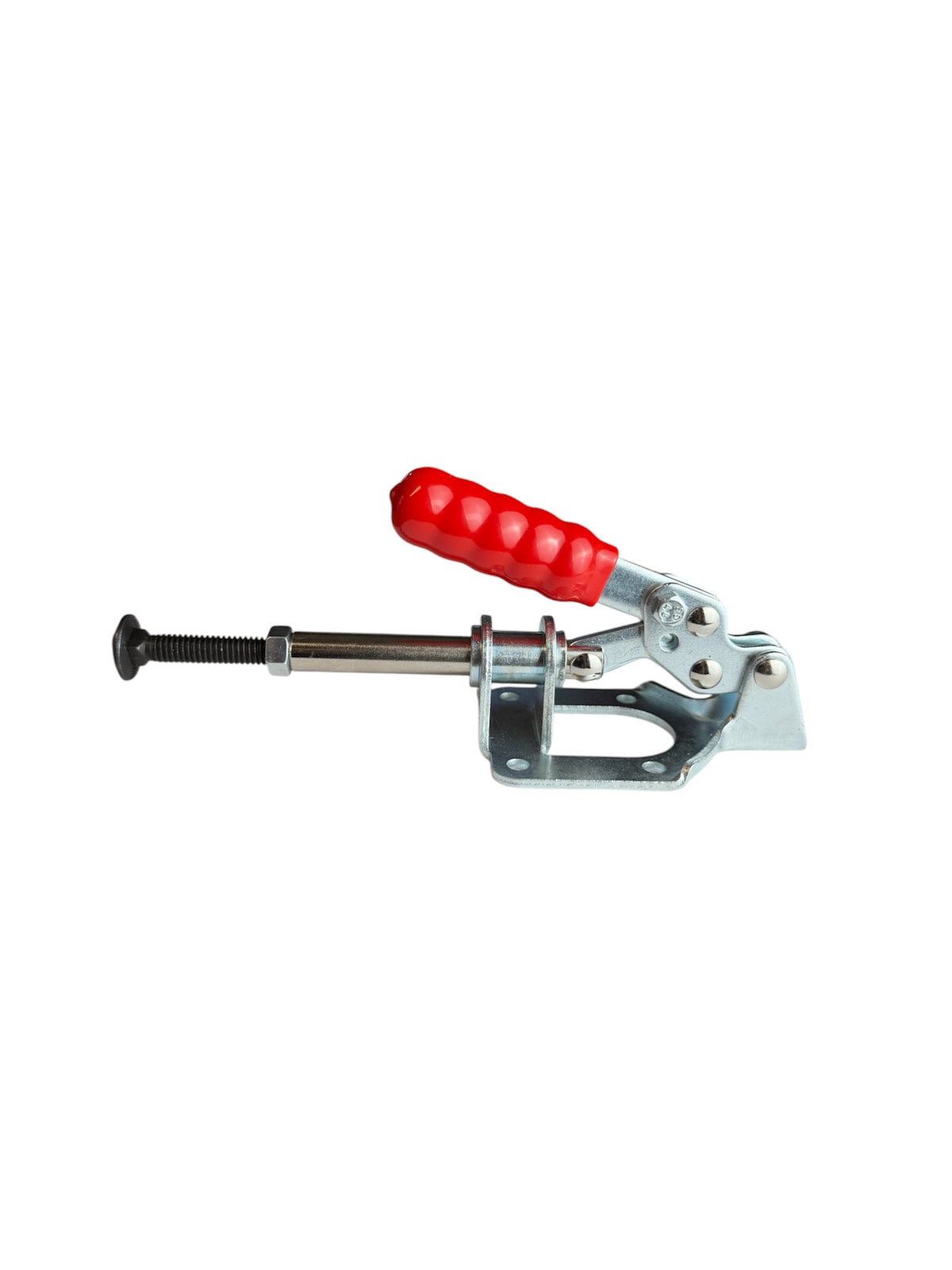

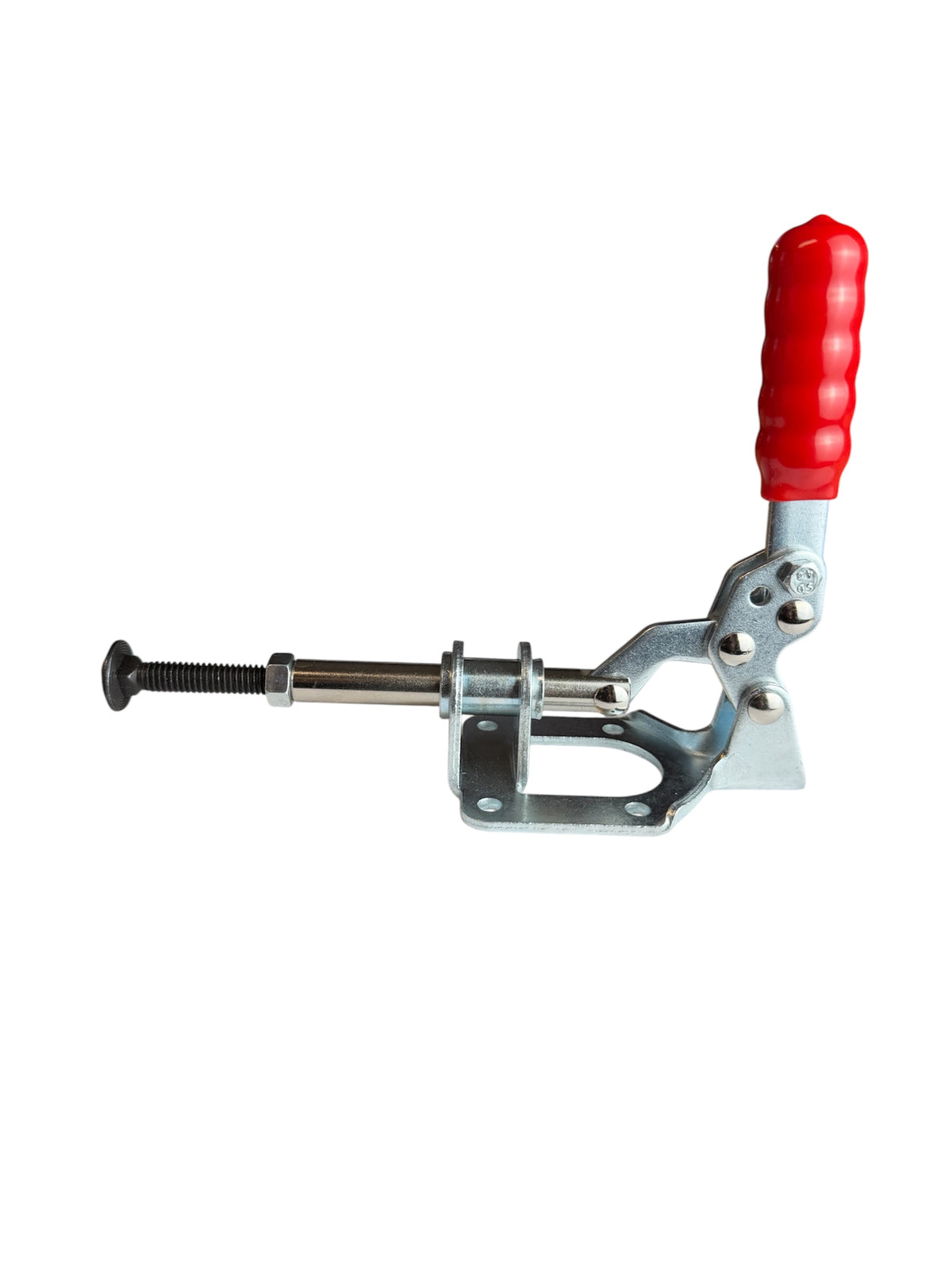

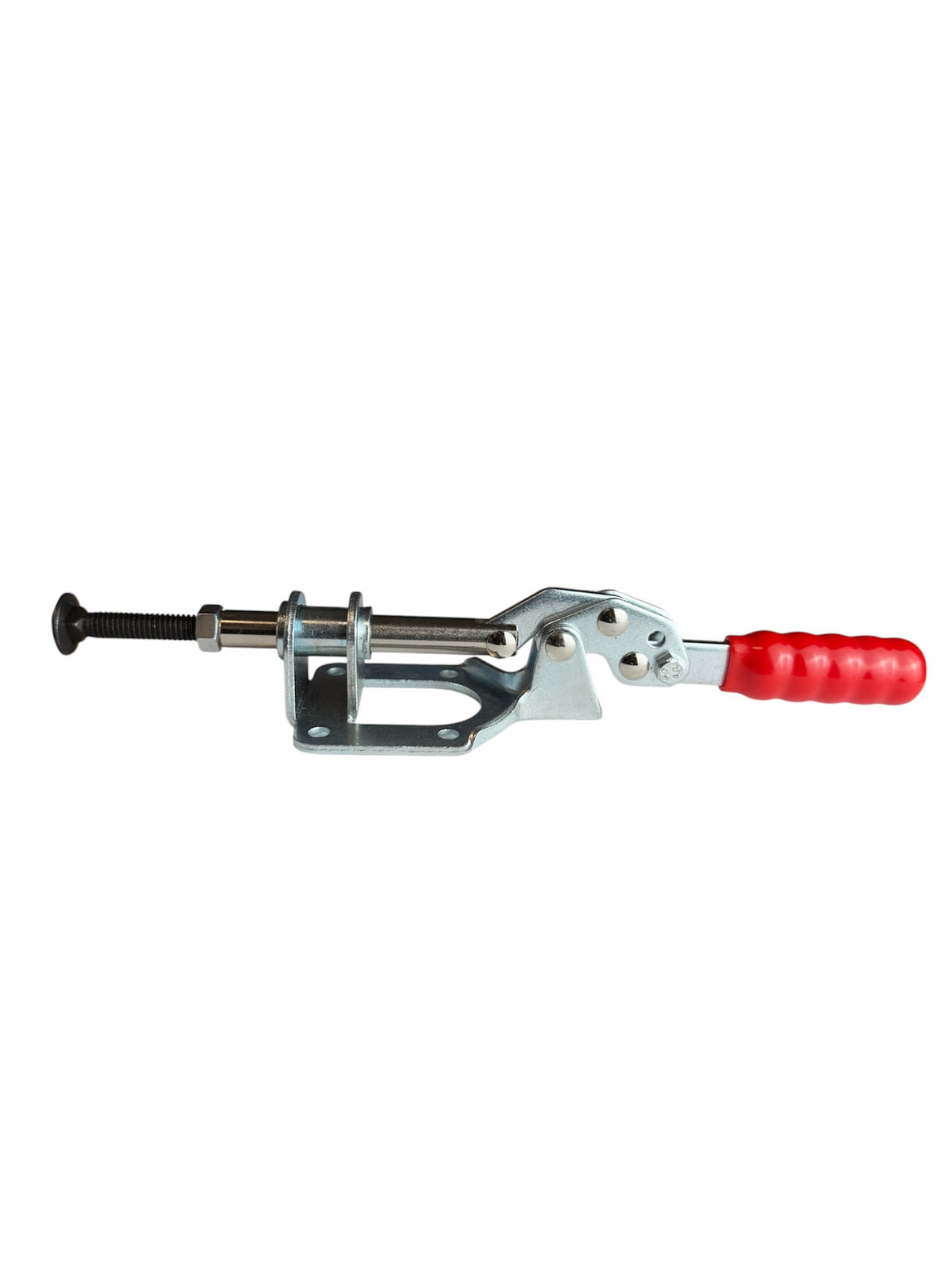

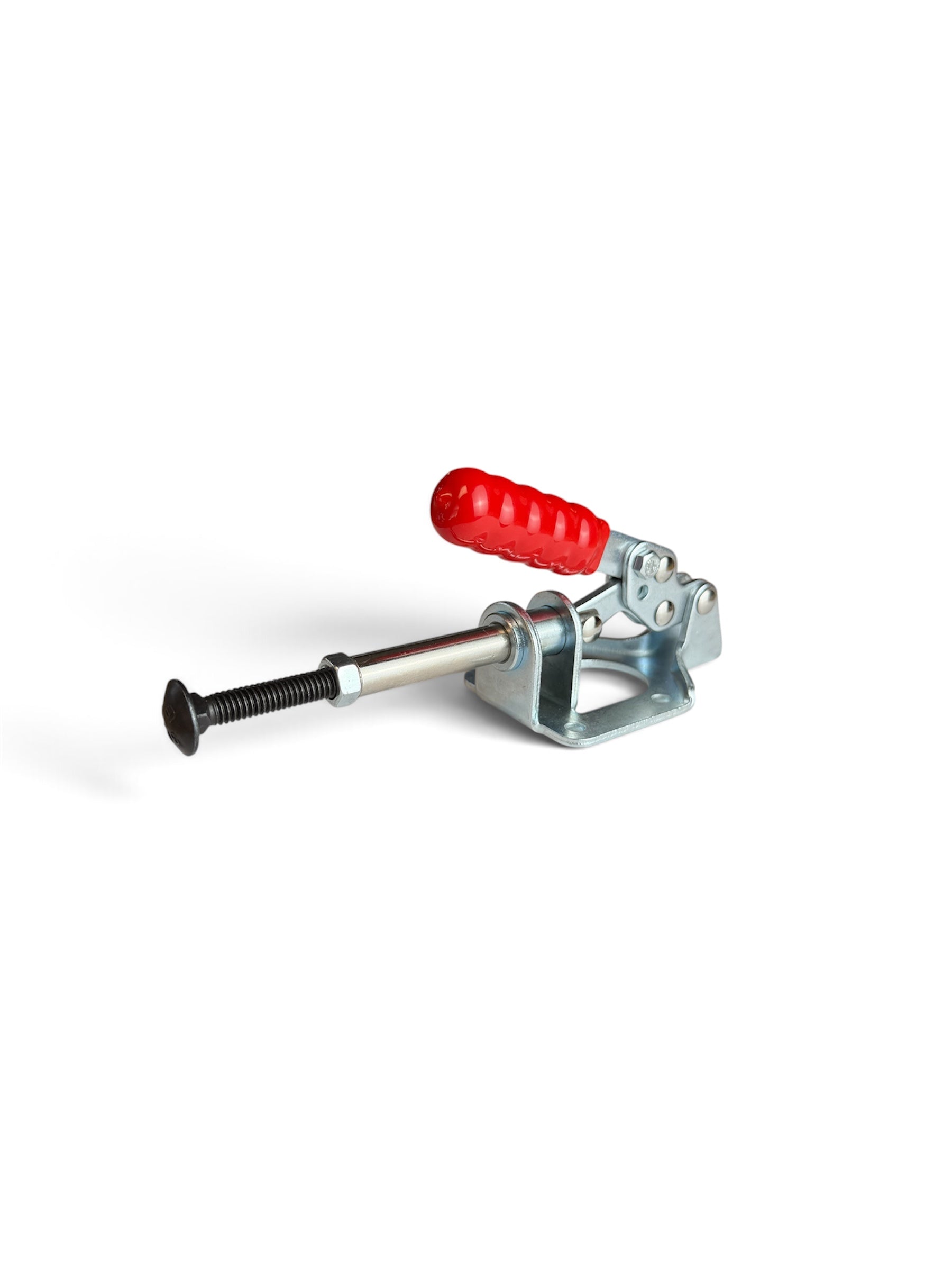

Medium Locking Plunger Clamp – GH-302-F-C

The GH-302-F-C Medium Locking Plunger Clamp provides strong, reliable holding power with the added versatility of locking securely in both the extended and retracted positions. With a 300 lb holding capacity and 1-1/4" of plunger travel, this clamp is an excellent choice for welding fixtures, fabrication, woodworking, and other applications requiring quick and dependable part positioning.

Constructed from durable zinc-plated steel, the GH-302-F-C is built for demanding shop environments. The oil- and stain-resistant red hand grips provide a comfortable, secure grip during operation, while the included 5/16"-3.00" carriage bolt allows for easy adjustment to accommodate different workpiece requirements.

The locking mechanism allows the plunger to remain securely in either the extended or retracted position, making this clamp especially useful for applications where repeatable positioning and quick access to the workpiece are important.

Features

• 300 lb holding capacity
• 1-1/4" plunger travel
• Locks securely in extended or retracted position
• Durable zinc-plated steel construction
• Oil- and stain-resistant red hand grips
• Includes 5/16"-3.00" carriage bolt
• Ideal for welding fixtures, fabrication, woodworking, and general fixturing applications

Specifications

• Part Number: GH-302-F-C
• Clamp Size: Medium
• Clamp Material: Steel, Zinc Plated
• Holding Capacity: 300 lbs
• Plunger Travel: 1-1/4"
• Locking Positions: Extended and Retracted
• Handle Grips: Oil- and Stain-Resistant Red
• Spindle: 5/16"-3.00" carriage bolt

Strong hold. Secure positioning. Built for the shop. The GH-302-F-C delivers reliable clamping performance with the versatility of locking in both extended and retracted positions.
