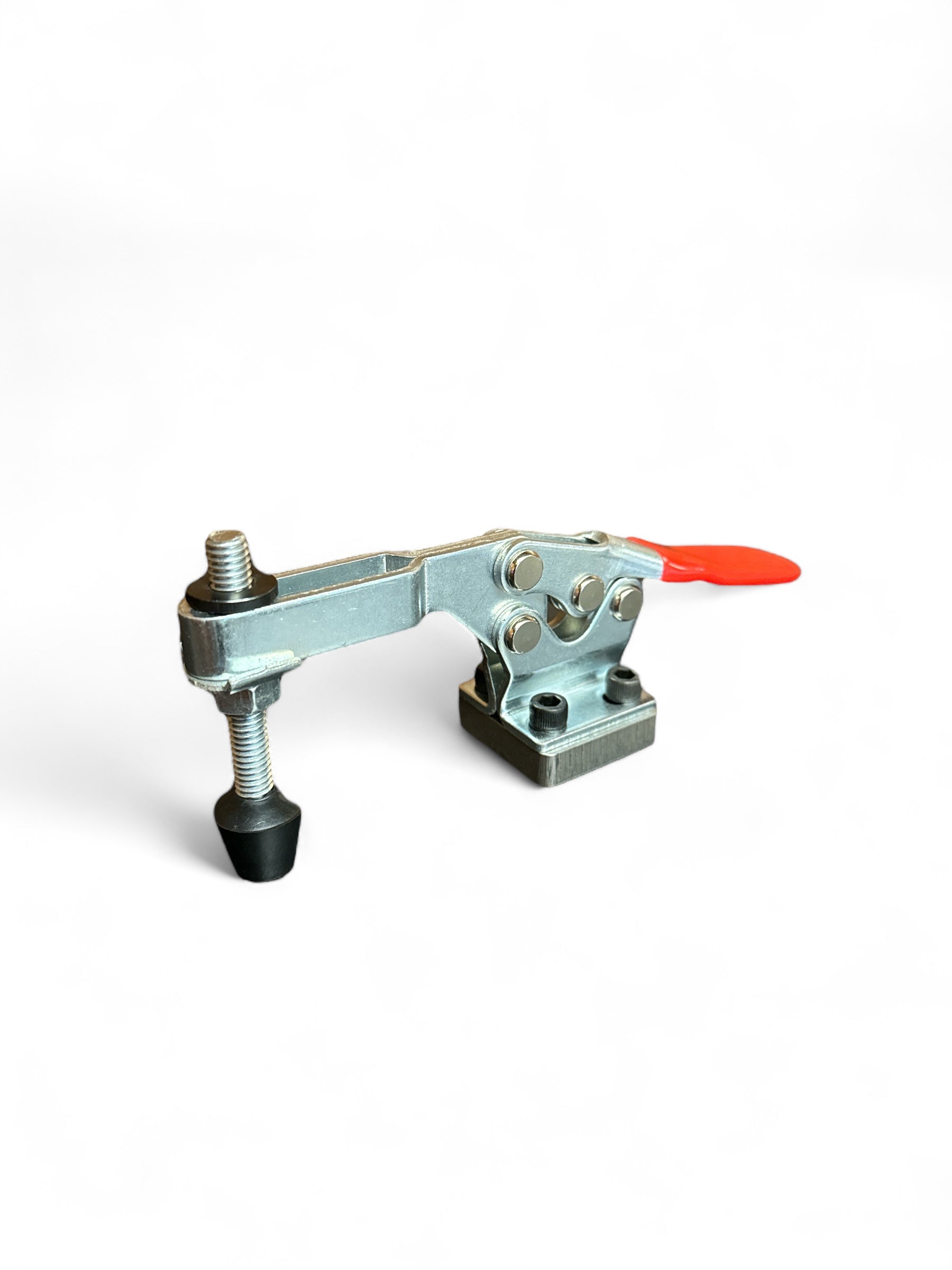

GH-225D-RIBS

Part #: GH-225D-RIBS

Equivalent to a (DE-225-U)

Low Profile!

• Cut flush with the top of the internal Threaded Bolt Retainer so that it doesn’t hit you in the back of the hand.

Designed for metalworking.

Download CAD STP File

Includes:

• Horizontal Clamp (GH- 225D)
• Mounting Block (GH-225D-CR (Steel))
• 5/16"  Internal Threaded Bolt Retainer
• Bent Washer
• Nut
• Rubber Spindle 5/16-18unc. x 2.87"

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Weld the mounting block in place
• And you are good to go!

*If you are done with the job, you can take the clamps off and reuse them on another fixture.  All you would need is another Mounting Block (GH-225D-CR (Steel) or (GH-225D- AL (Aluminum)

We find this best to use with parts that do not get very hot or if the part just needs to be held in place.
