GH-13007-RIBS

Part #: GH-13007-RIBS

Low Profile!

• Cut the spindle flush with the top of the internal Threaded Bolt Retainer so that it doesn’t hit you in the back of the hand.

Equivalent to a (DE-307-U)

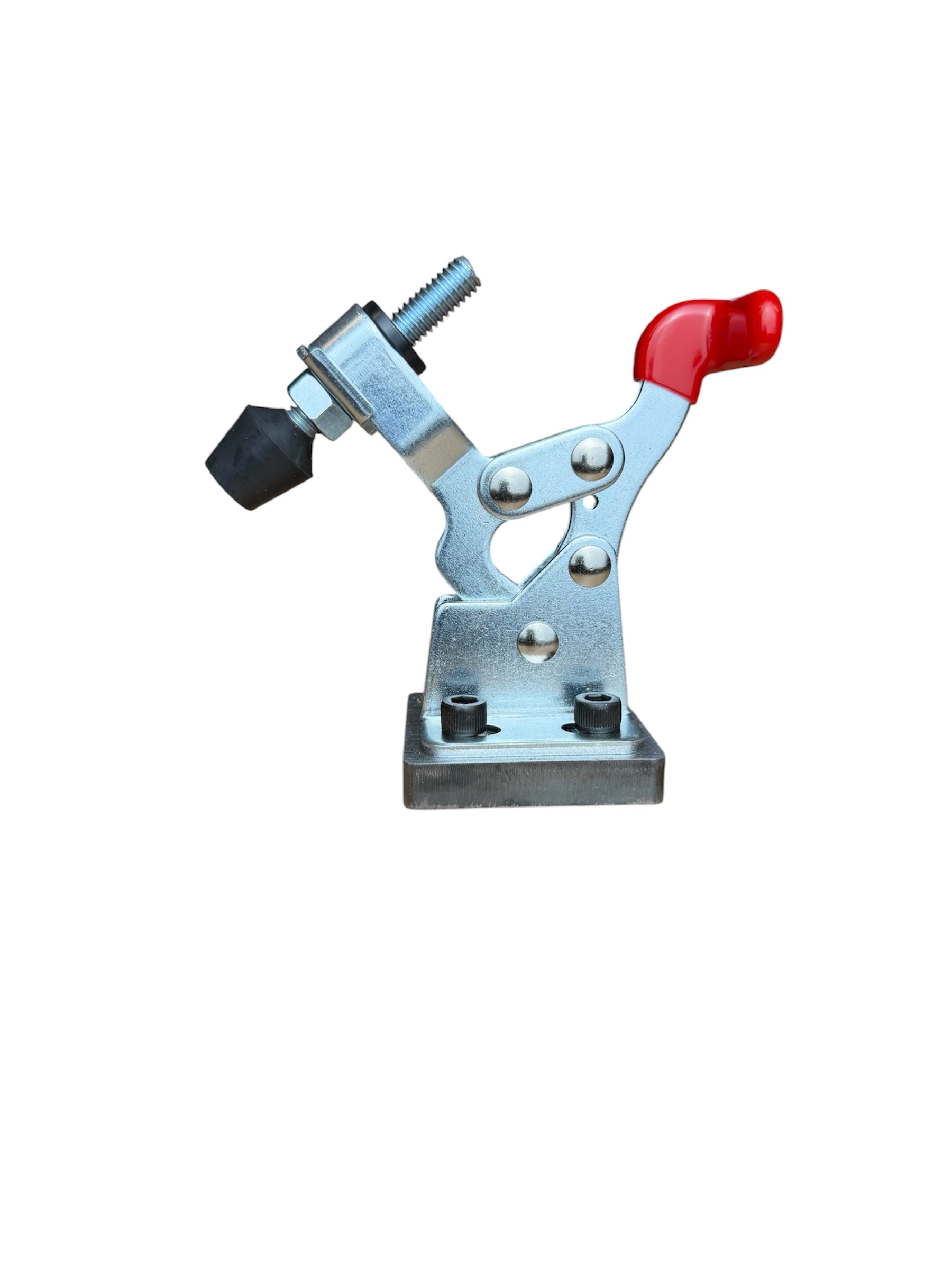

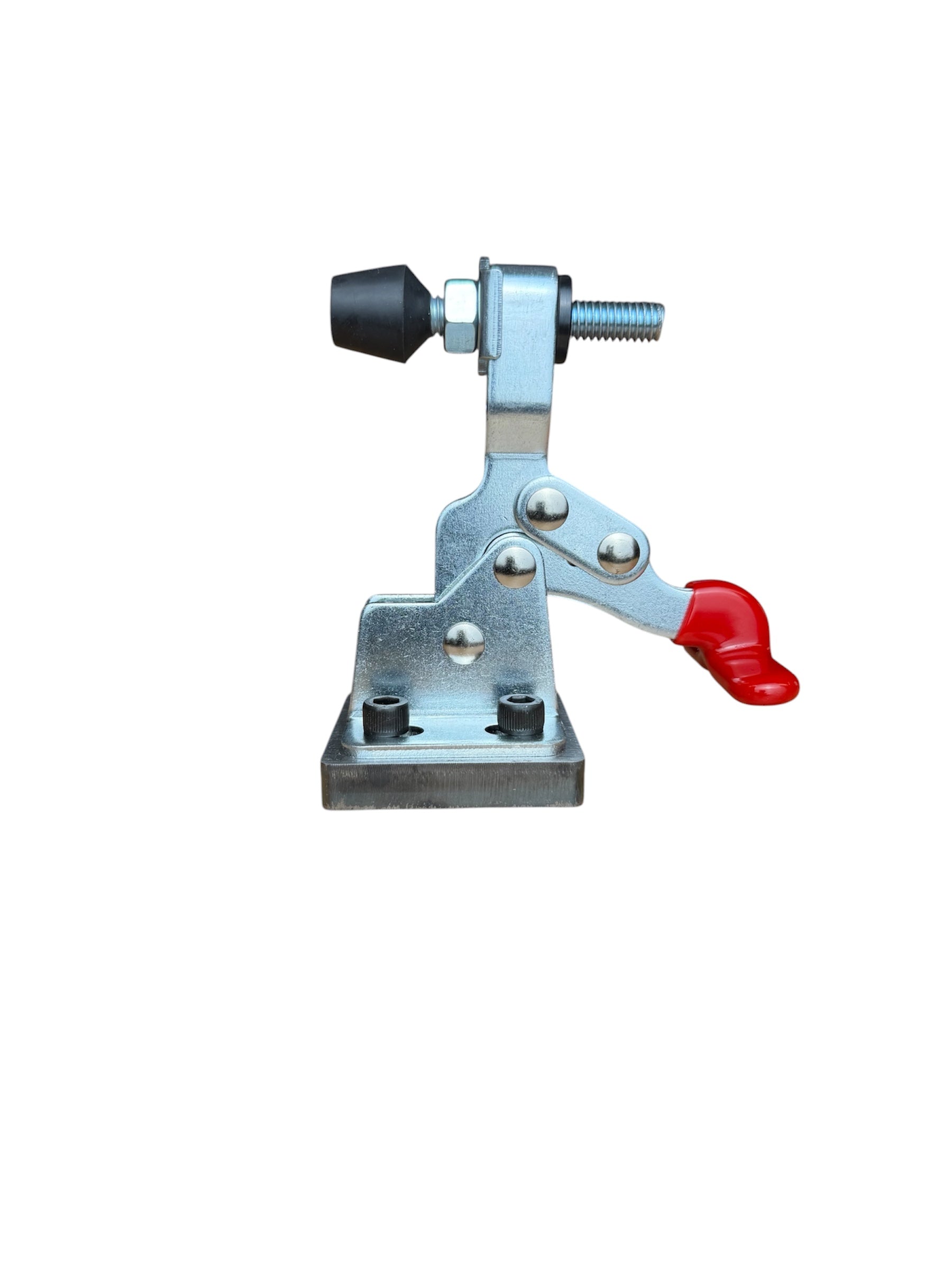

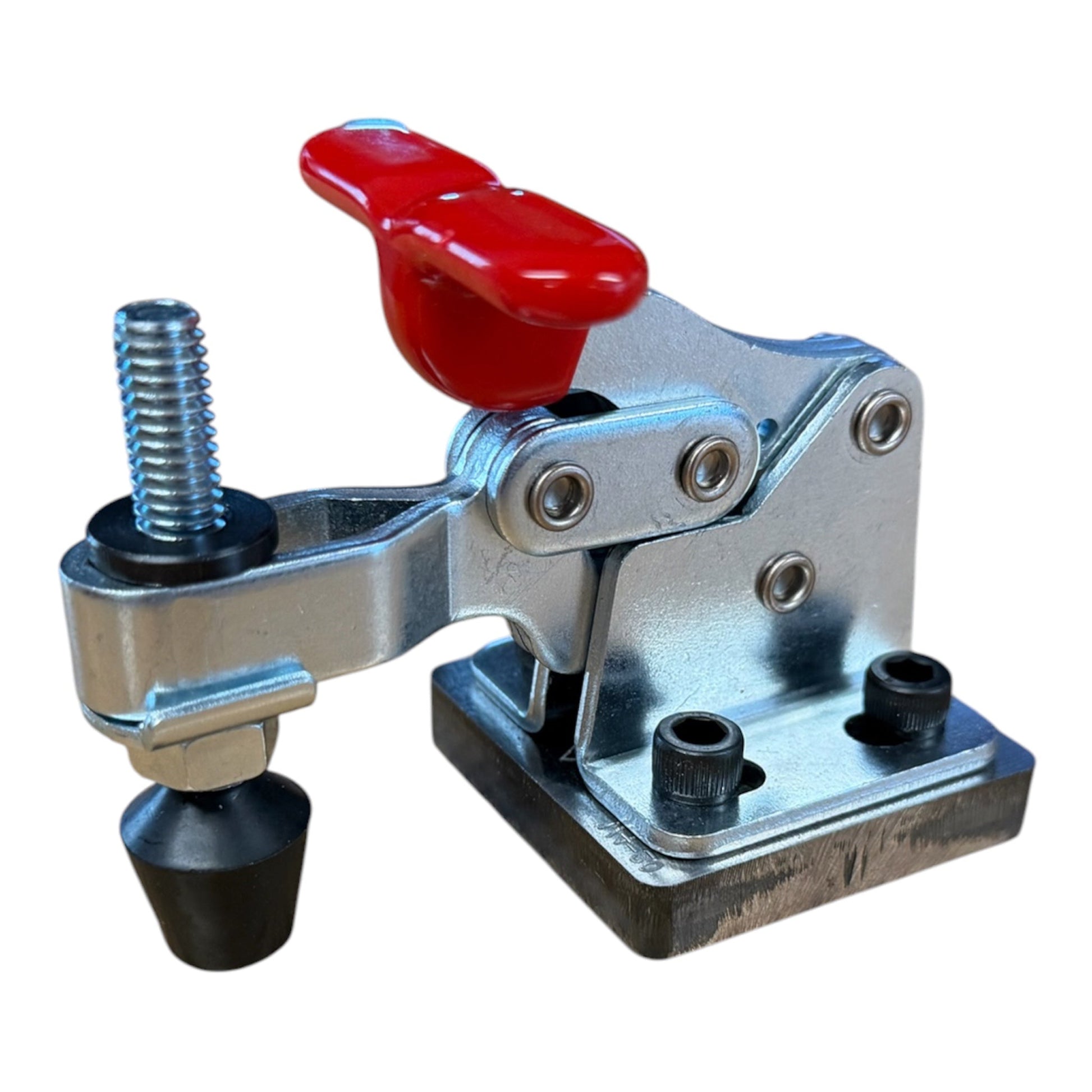

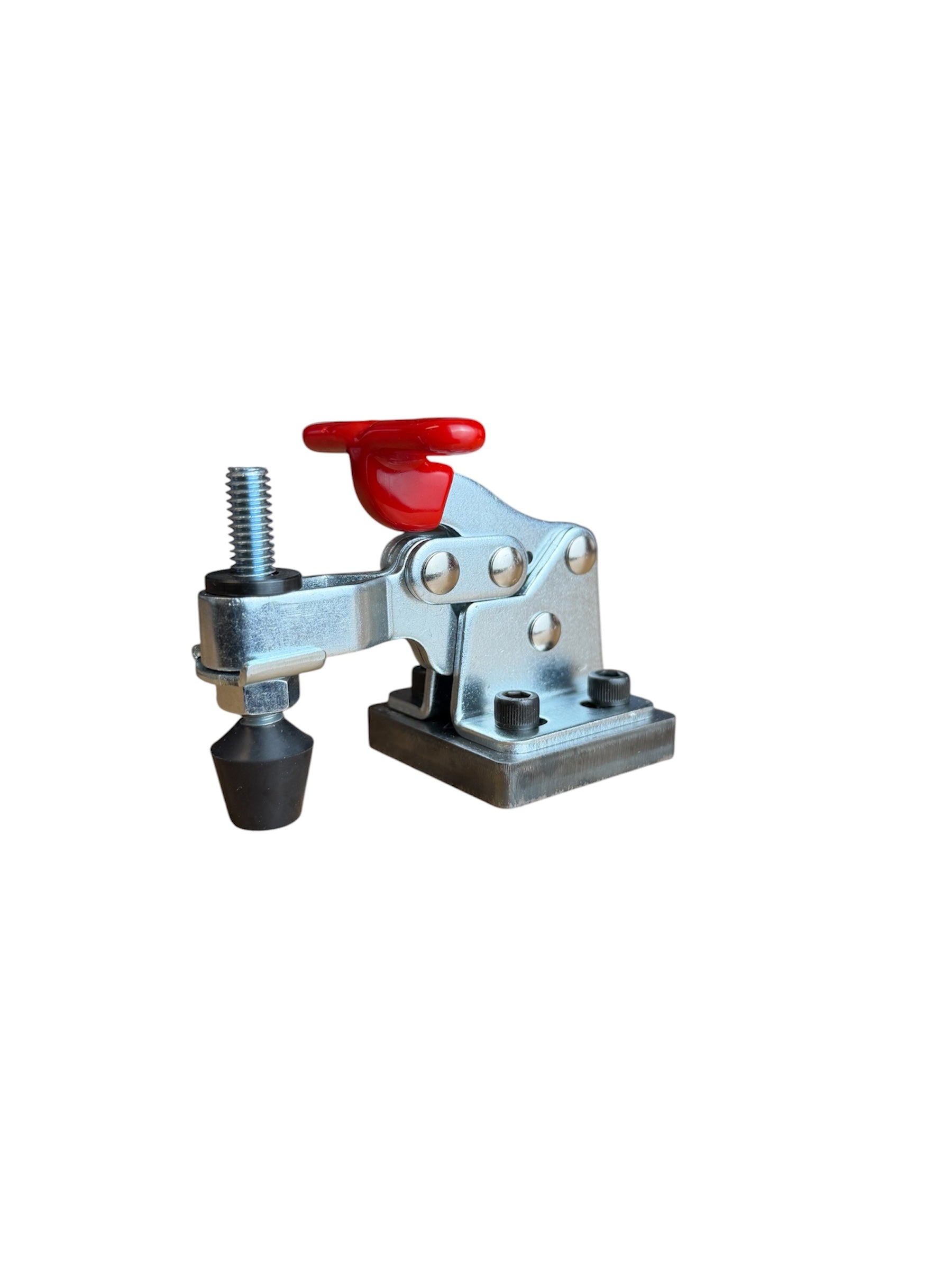

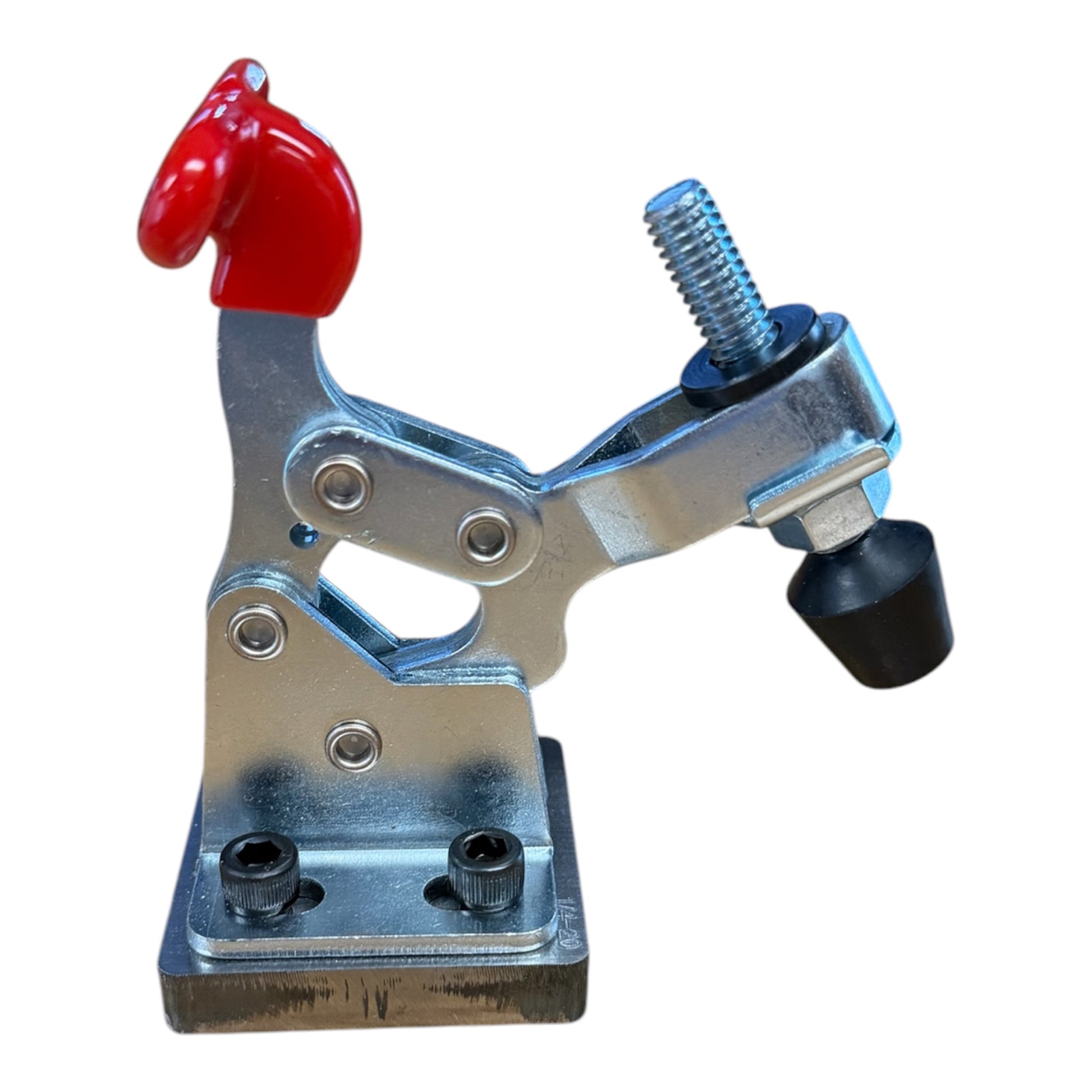

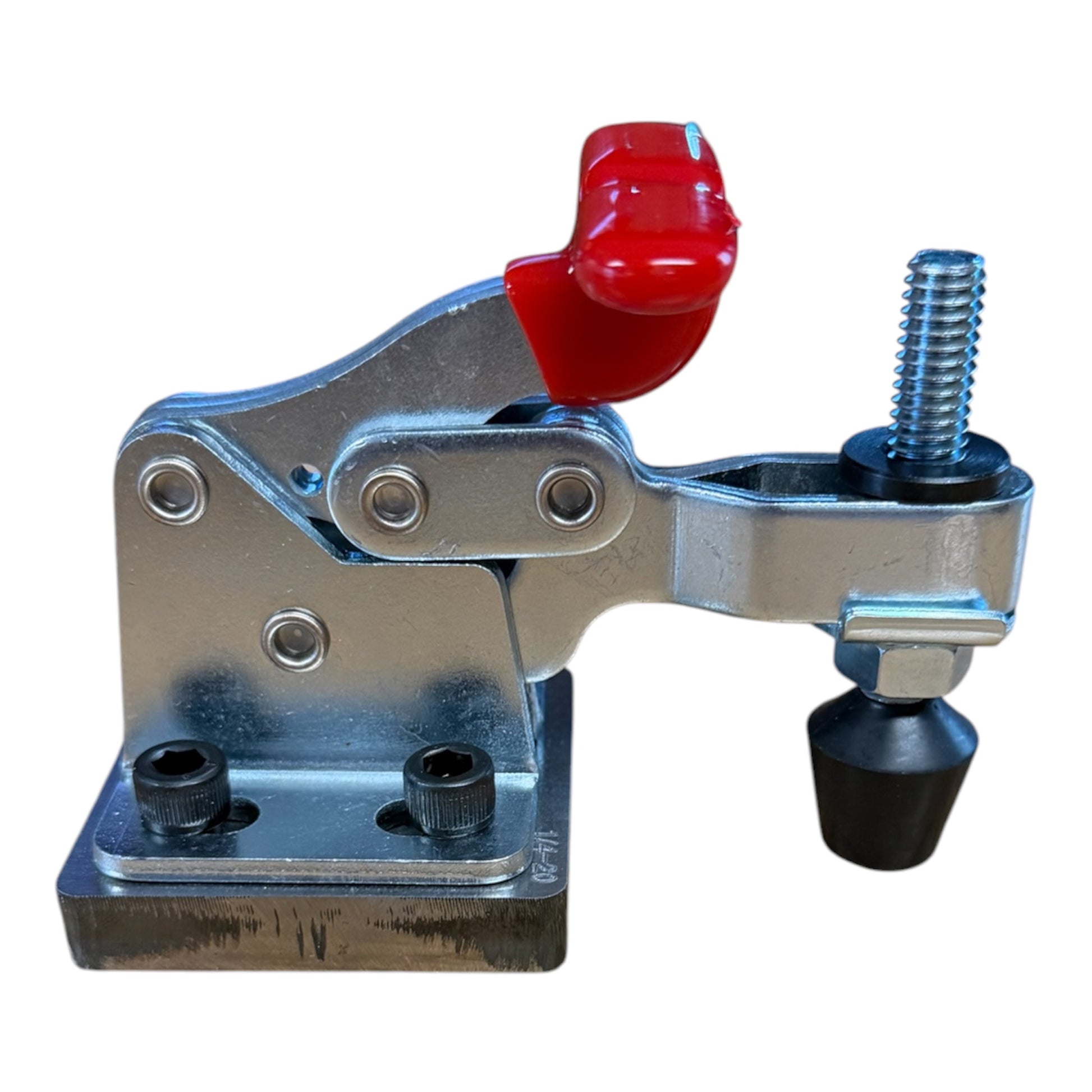

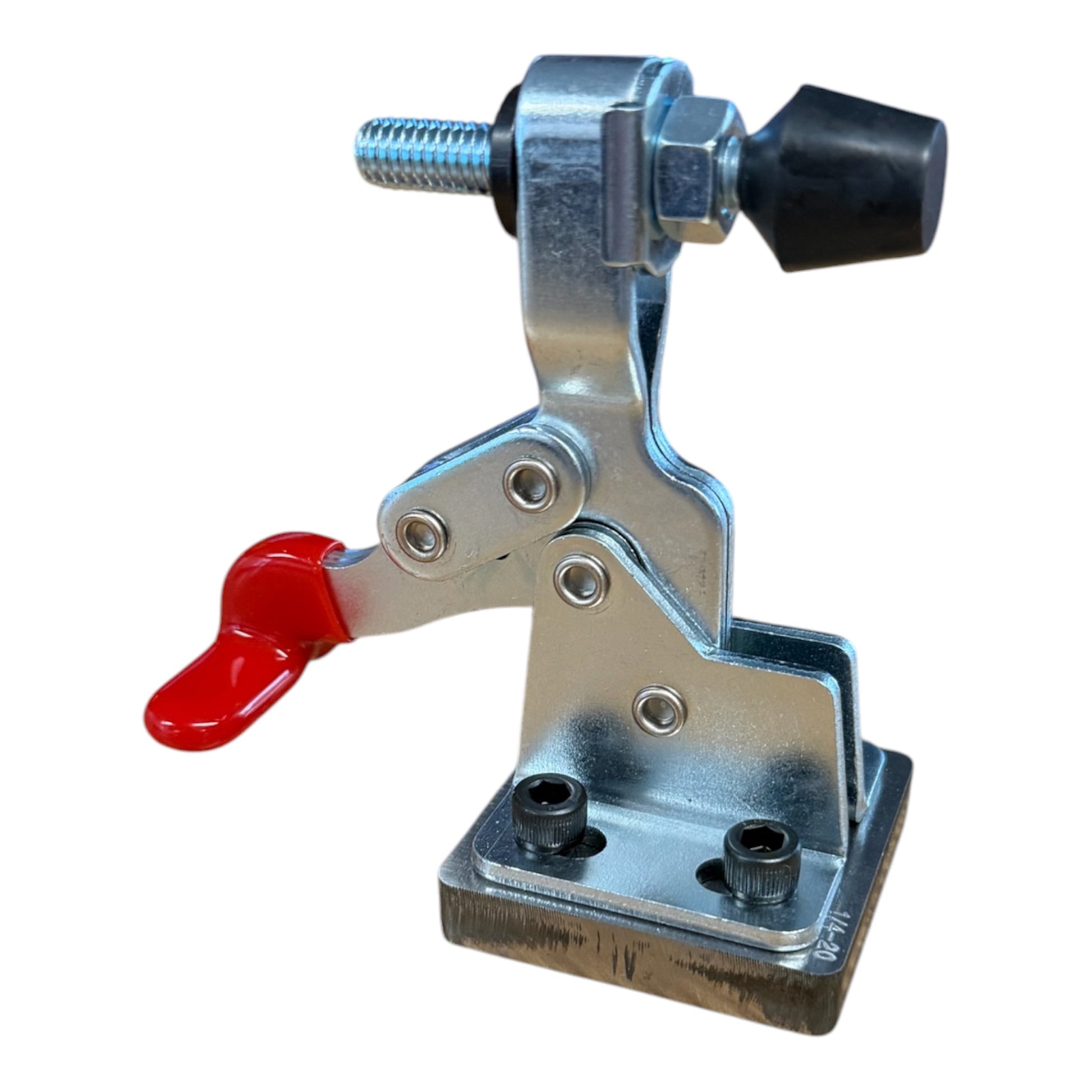

Designed for metalworking. A hold down clamp featuring a open arm with a flanged base. it can be used for check fixtures, assembly or light duty machining. Equipped with a mounting block that allows for quick removal if the clamp ever needs to be replaced.

Download CAD STP File

Includes:

• Horizantail Clamp (GH-13007)
• Sherwood Steel Mounting Block
• 5/16" Internal Threaded Bolt Retainer
• Rubber Spindle 5/16-18unc. x 2.87"
• Bent washer
• Jam nut

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Weld in position
• Cut the spindle flush with the top of the internal Threaded Bolt Retainer so that it doesn’t hit you in the back of the hand.
• And you are good to go!
