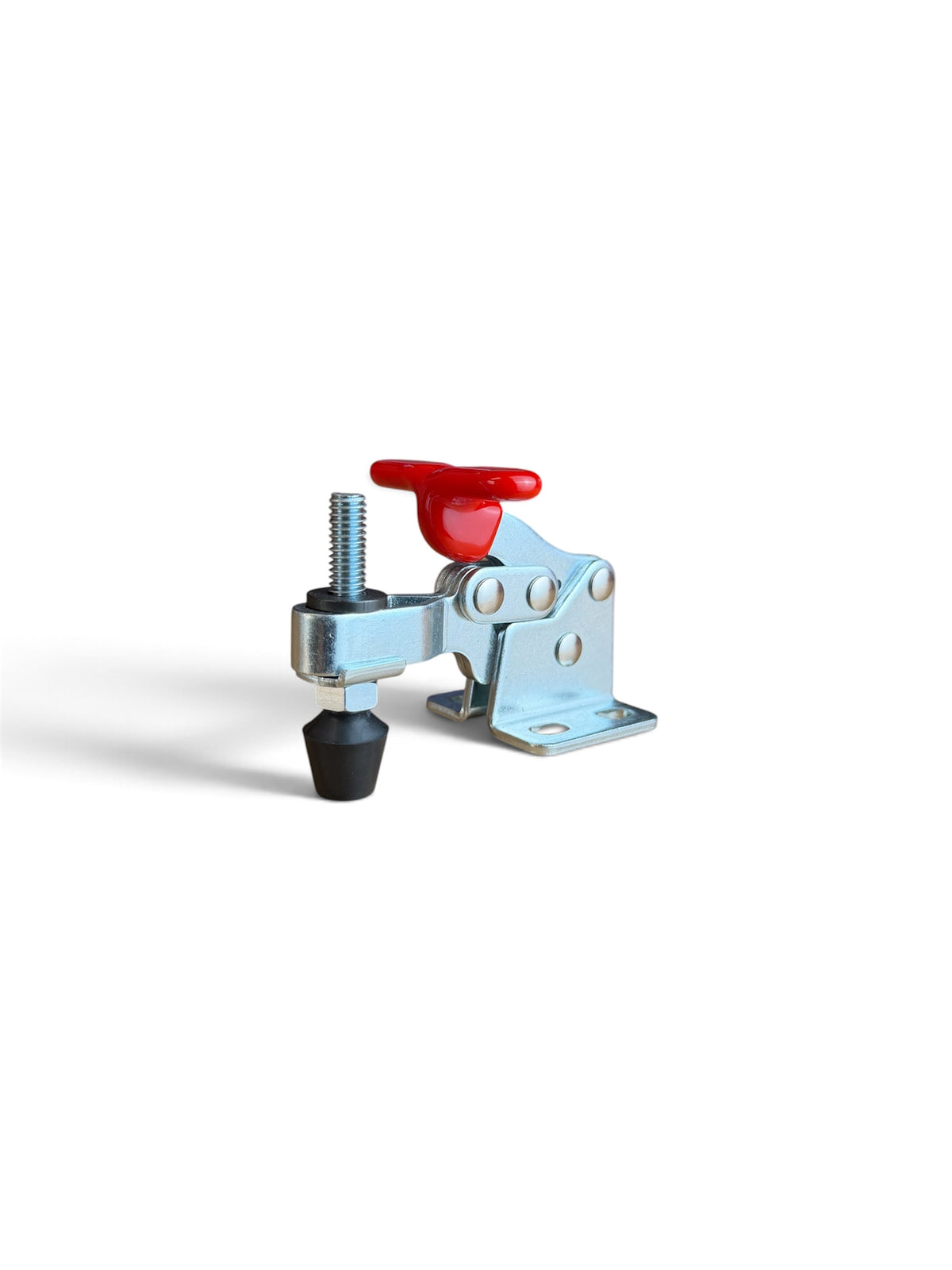

GH-13007-RI

Part #: GH-13007-RI

Low Profile!!

• Cut spindle flush with the top of the internal Threaded Bolt Retainer so that it doesn’t hit you in the back of the hand.

Equivalent to a (DE- 307-U)

*If you plan to use this clamp for metalworking we recommend using our GH-13007-RIBS for a clamp and mounting block assembly allowing you to replace a clamp quickly thanks to our patented mounting block.

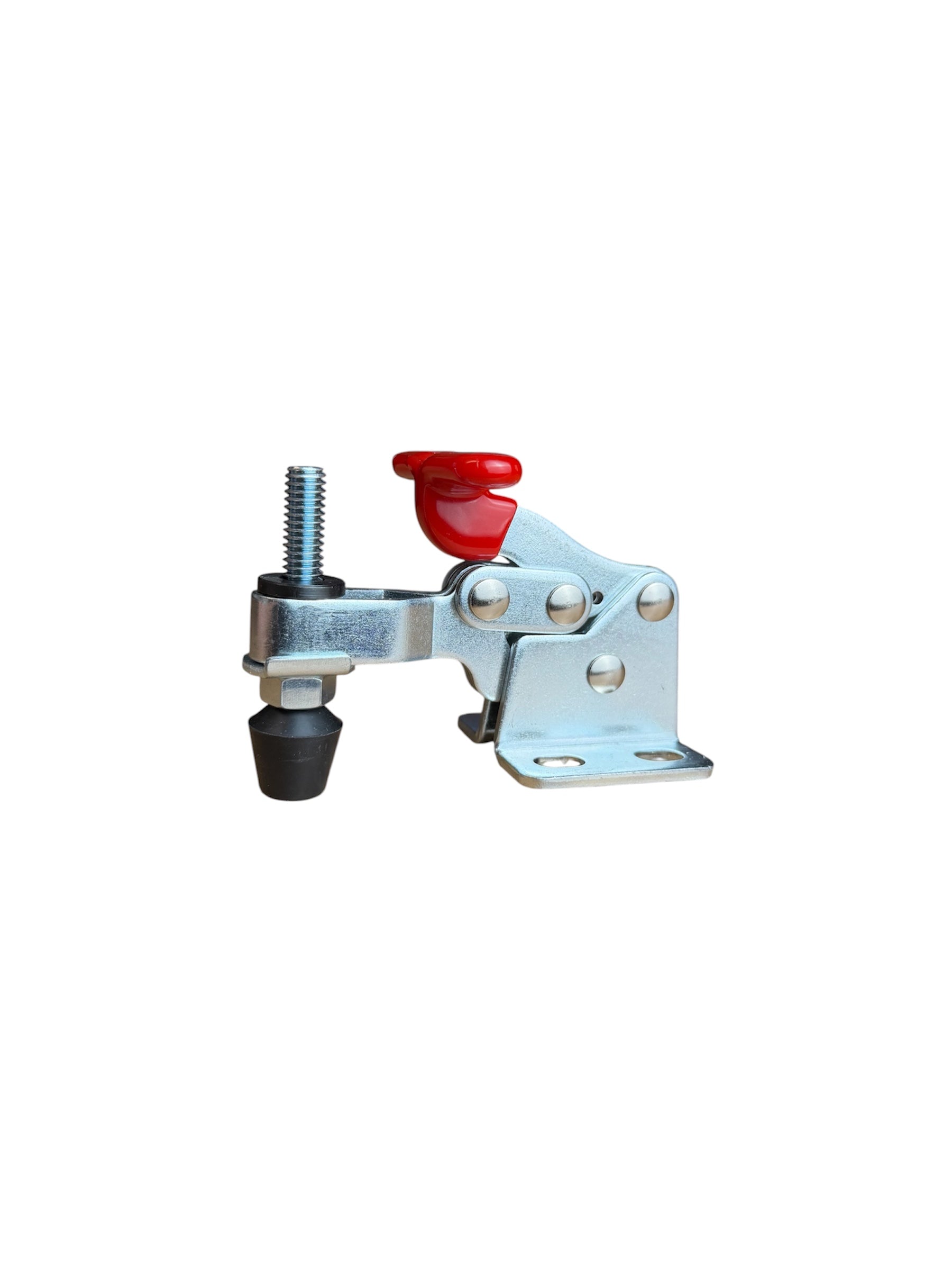

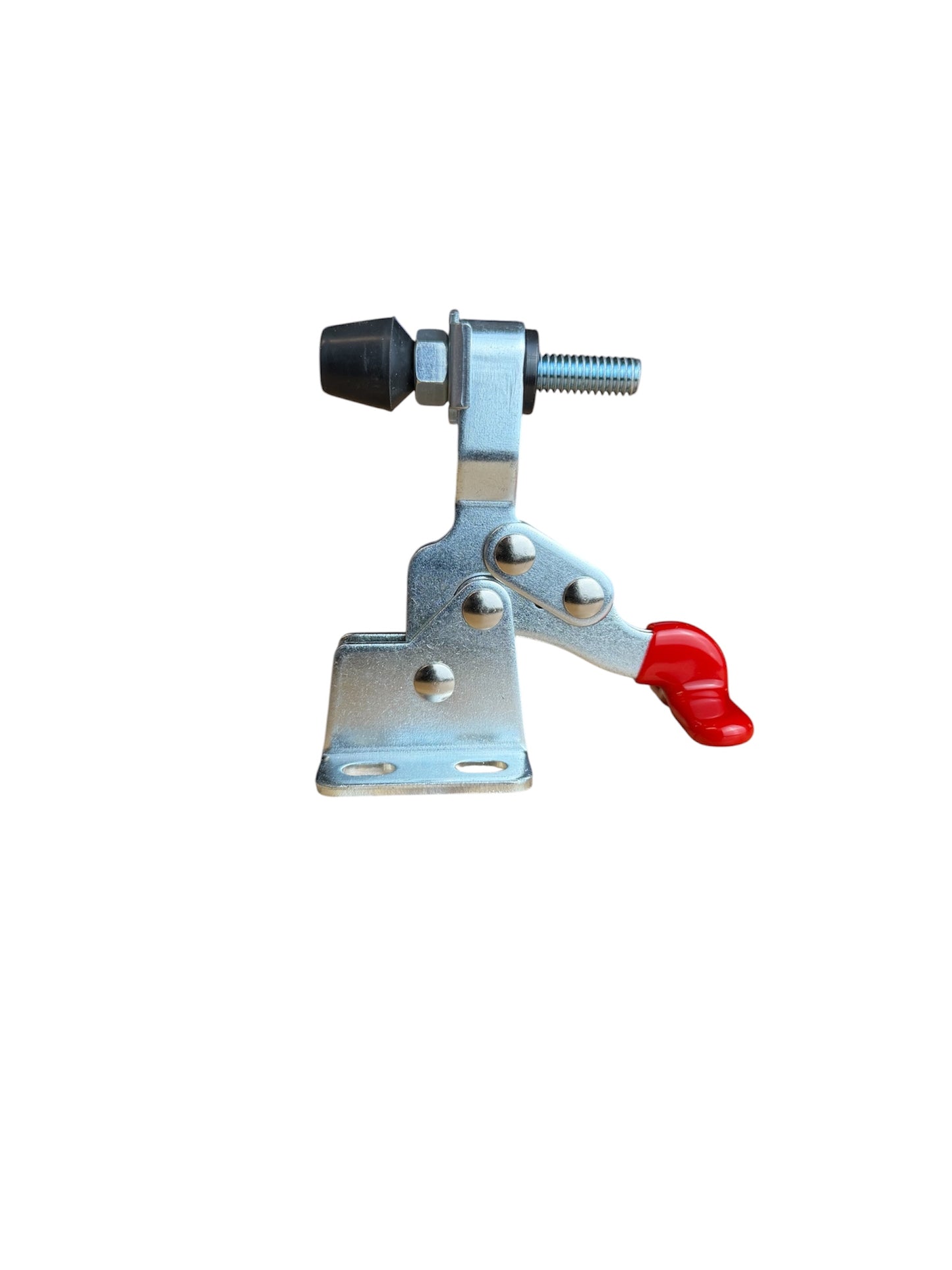

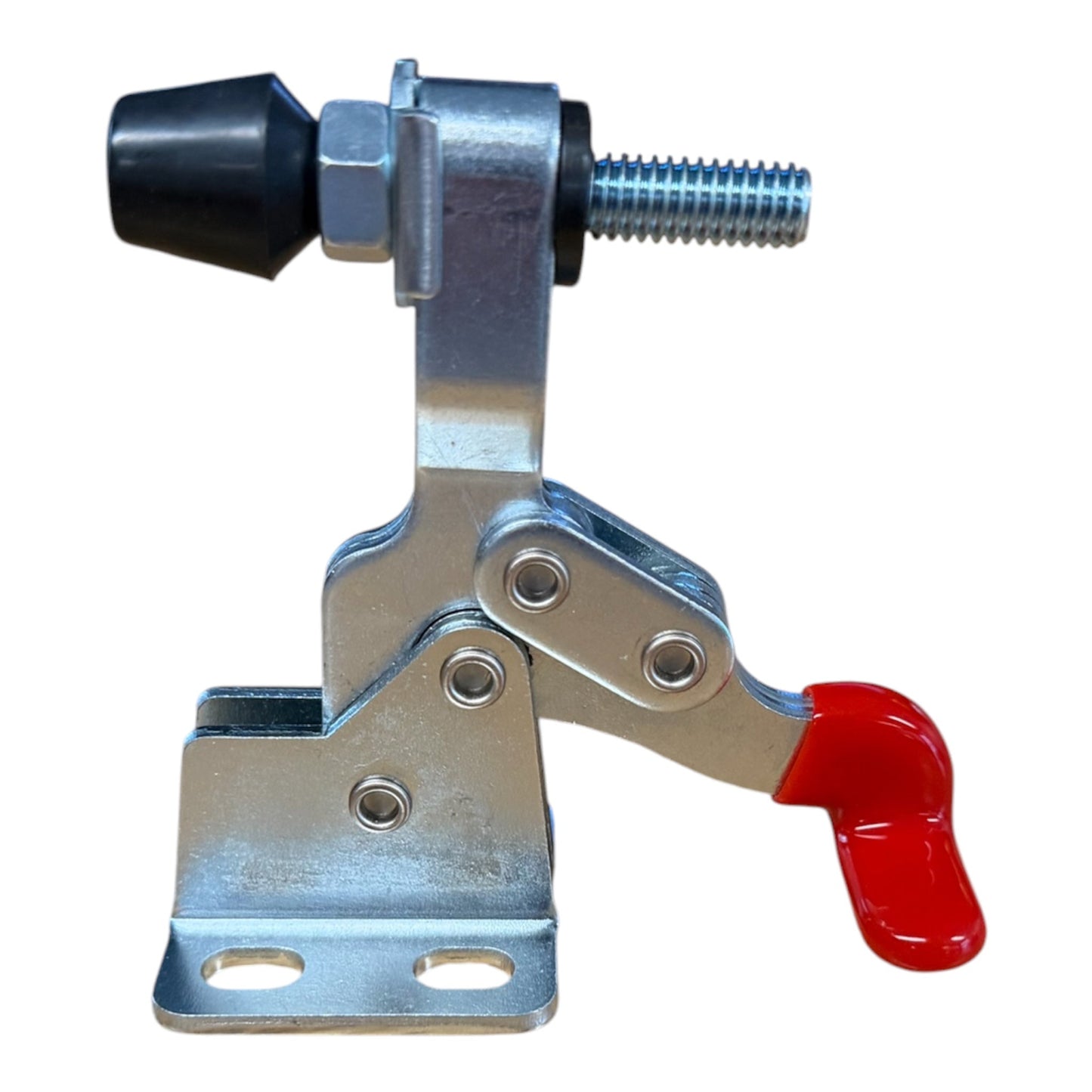

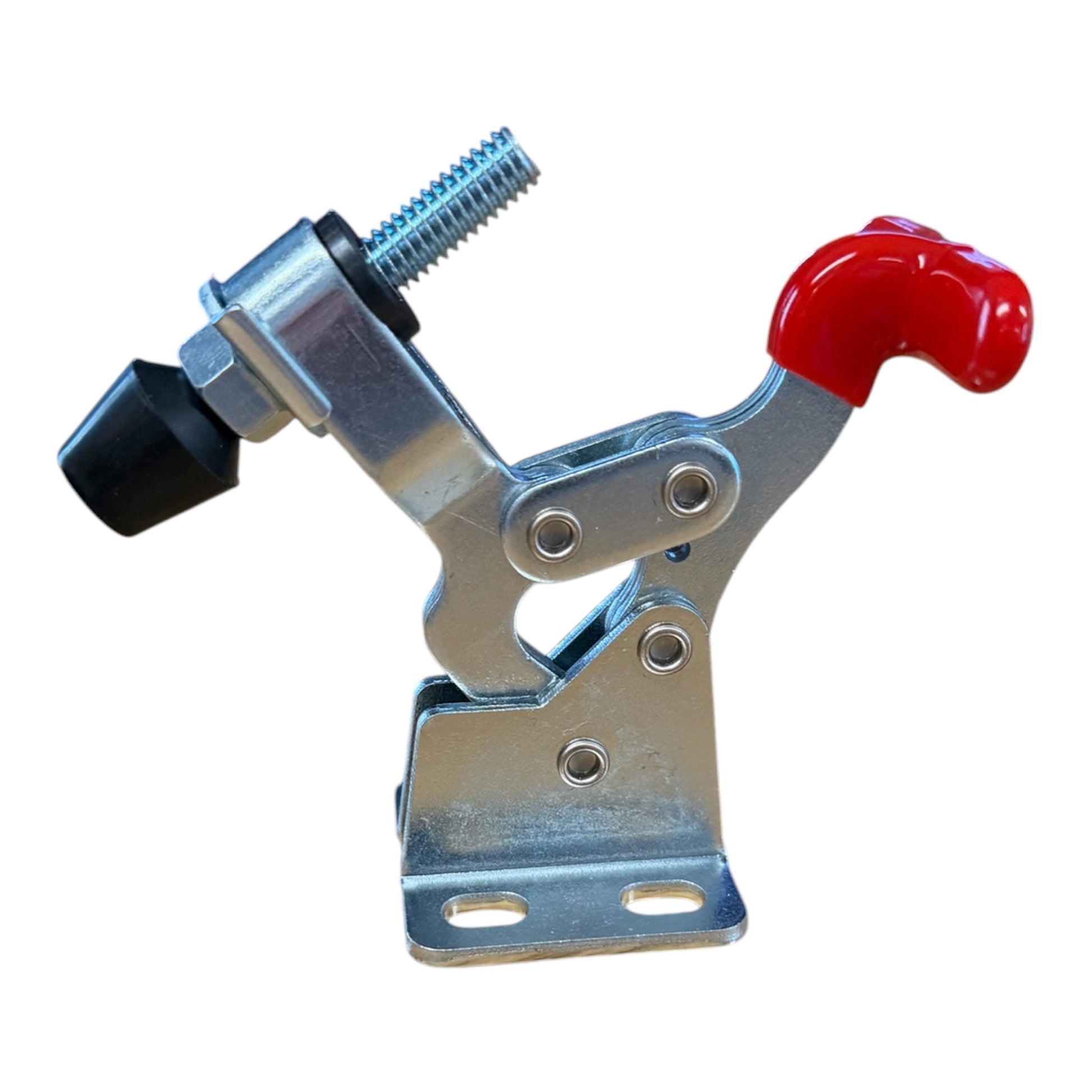

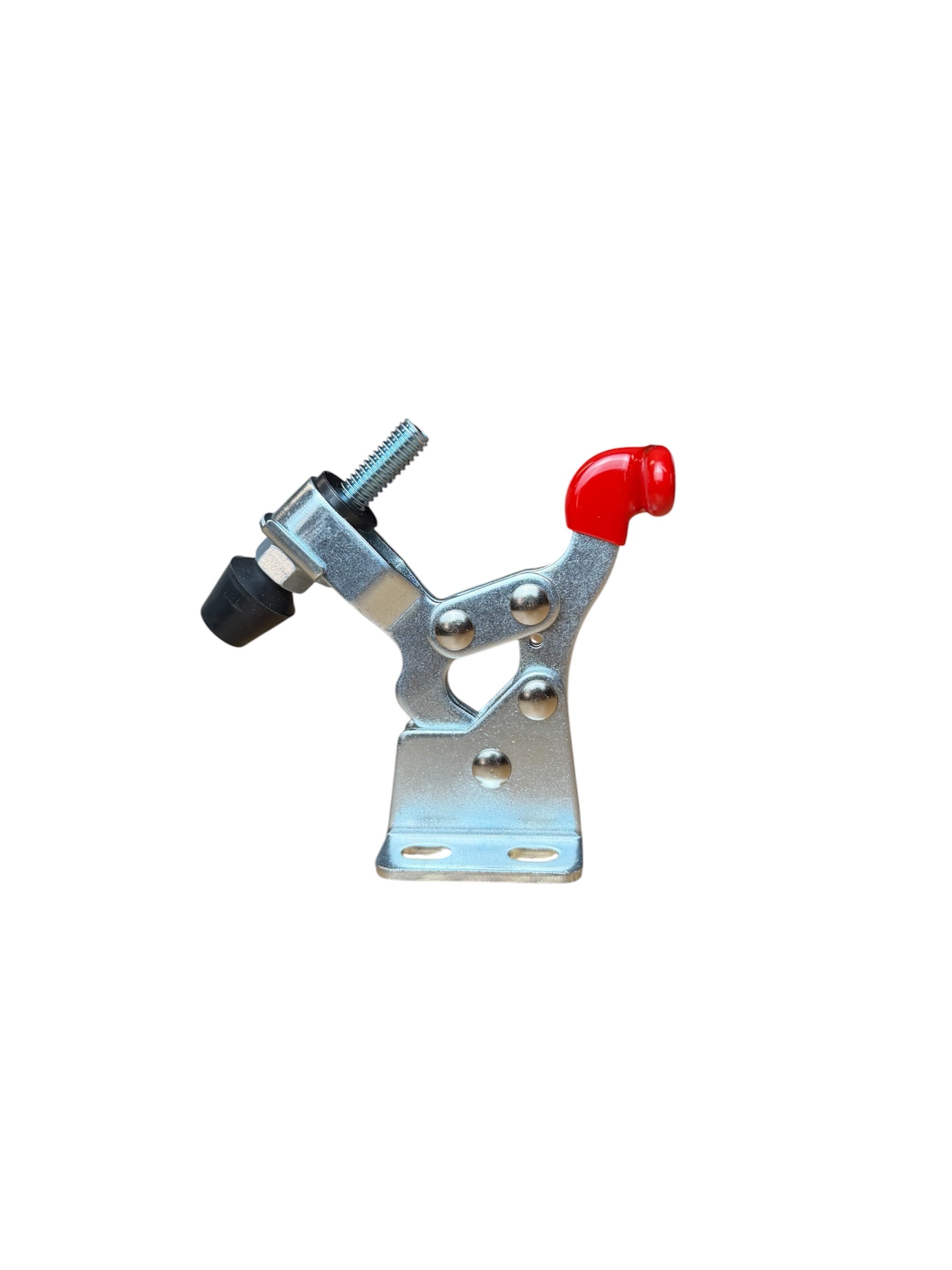

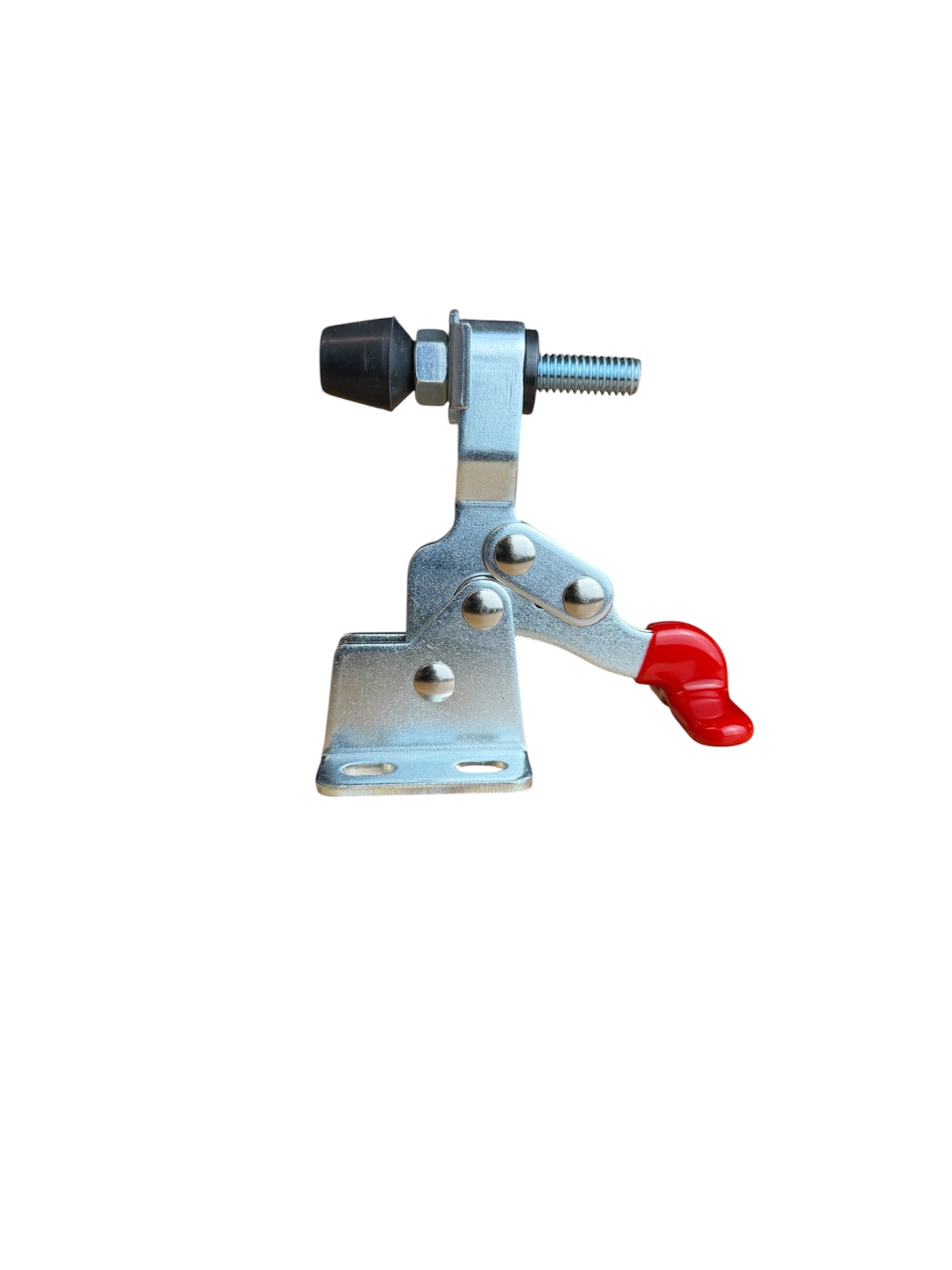

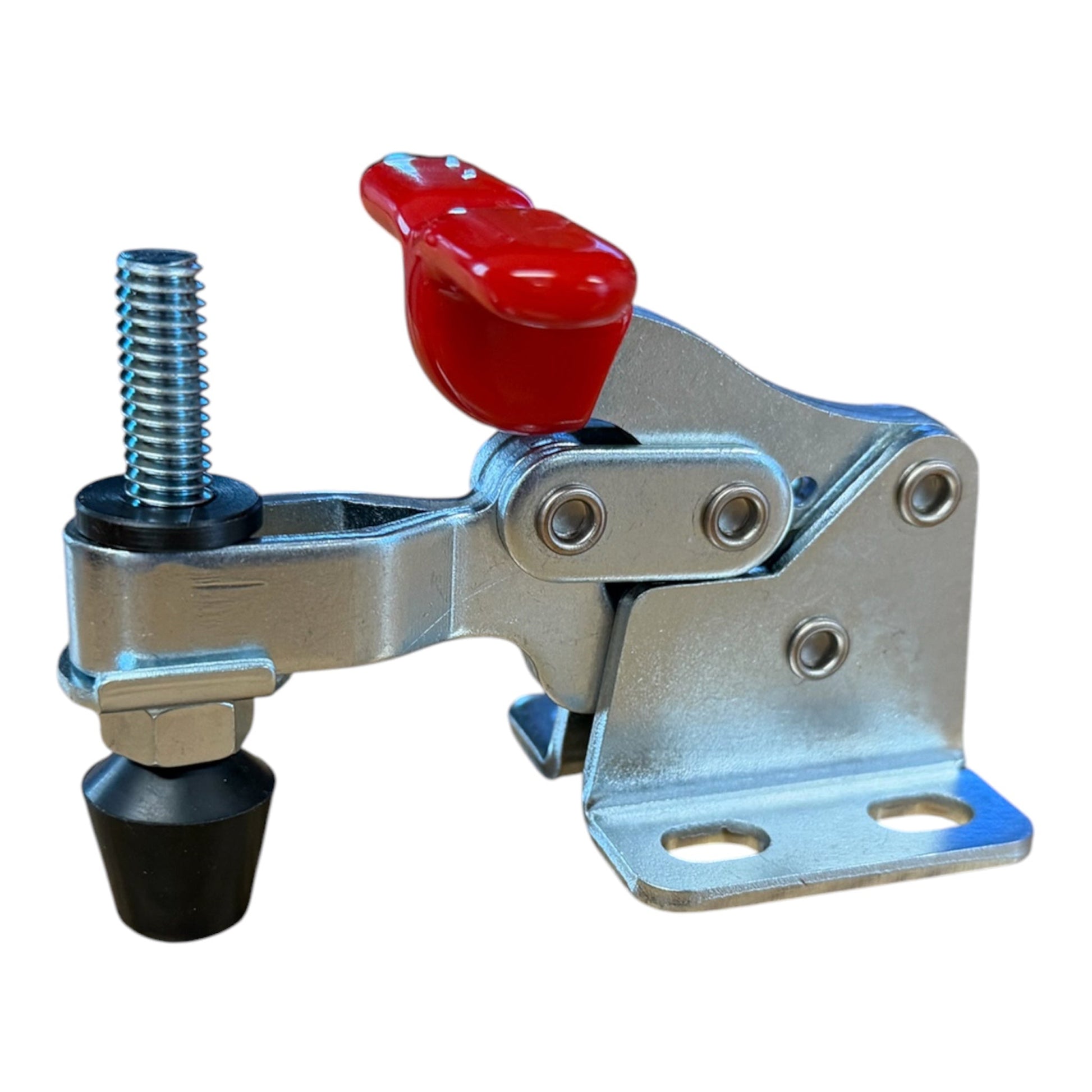

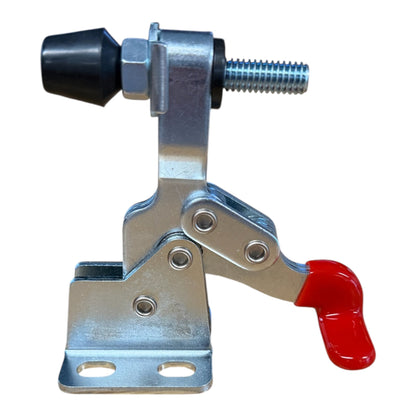

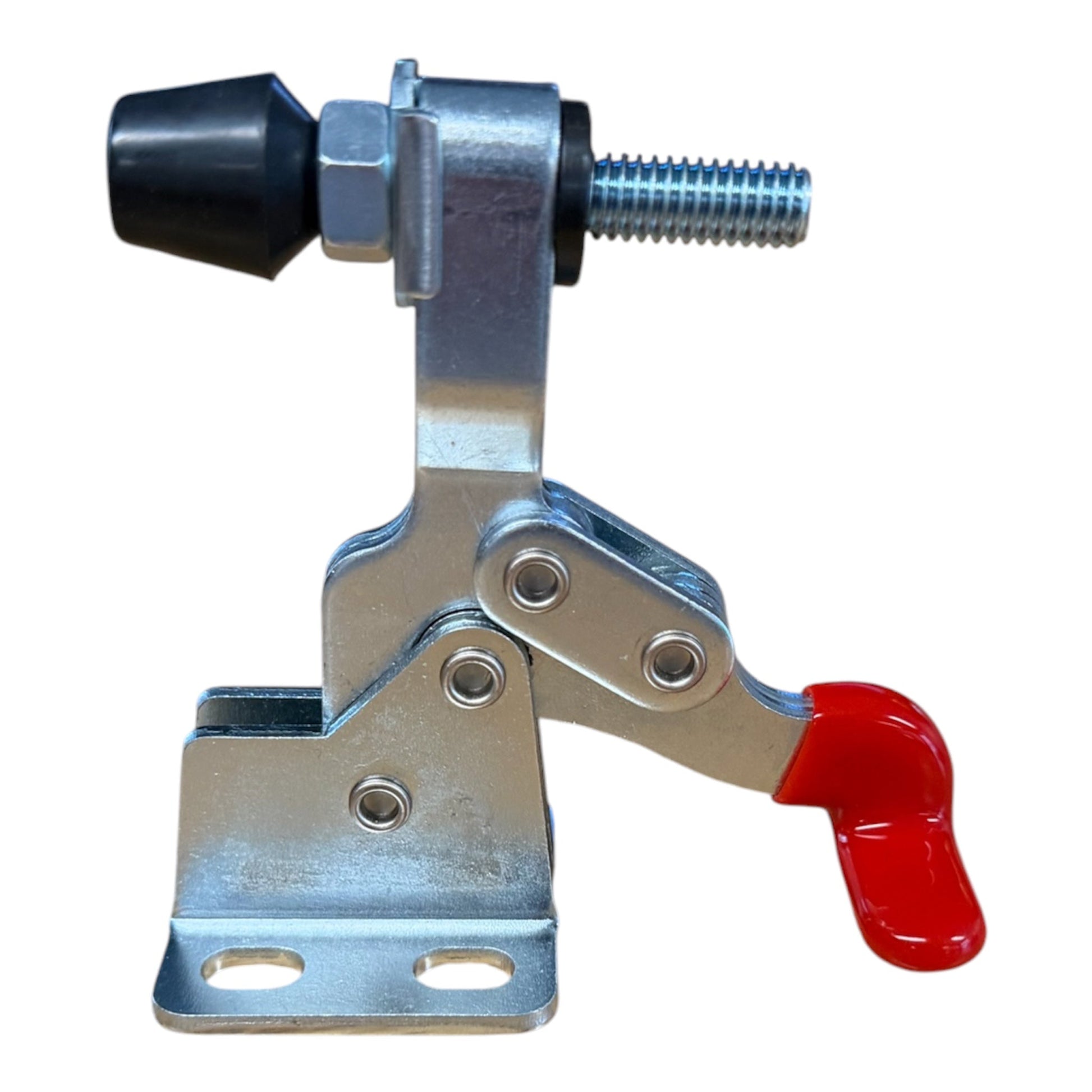

Designed for woodworking or metalworking. A hold down clamp featuring a open arm with a flanged base. it can be used for check fixtures, assembly or light duty machining.

Download CAD STP File

Includes:

• Horizantail Clamp (GH-13007)
• 5/16" Internal Threaded Bolt Retainer
• Rubber Spindle 5/16-18unc. x 2.87"
• Bent washer
• Nut

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Secure in position
• Cut spindle flush with the top of the internal Threaded Bolt Retainer so that it doesn’t hit you in the back of the hand.
• And you are good to go!


Specifications

Holding Capacity: 350lbs
Base Type - Flanged
Bar Type - U-Bar
Bar opens - 90 degrees
Handle moves - 170 degrees
Overall Height - 2.36 Inch
Overall Length - 3.70 Inch
Height Under Bar - 0.87 Inch
