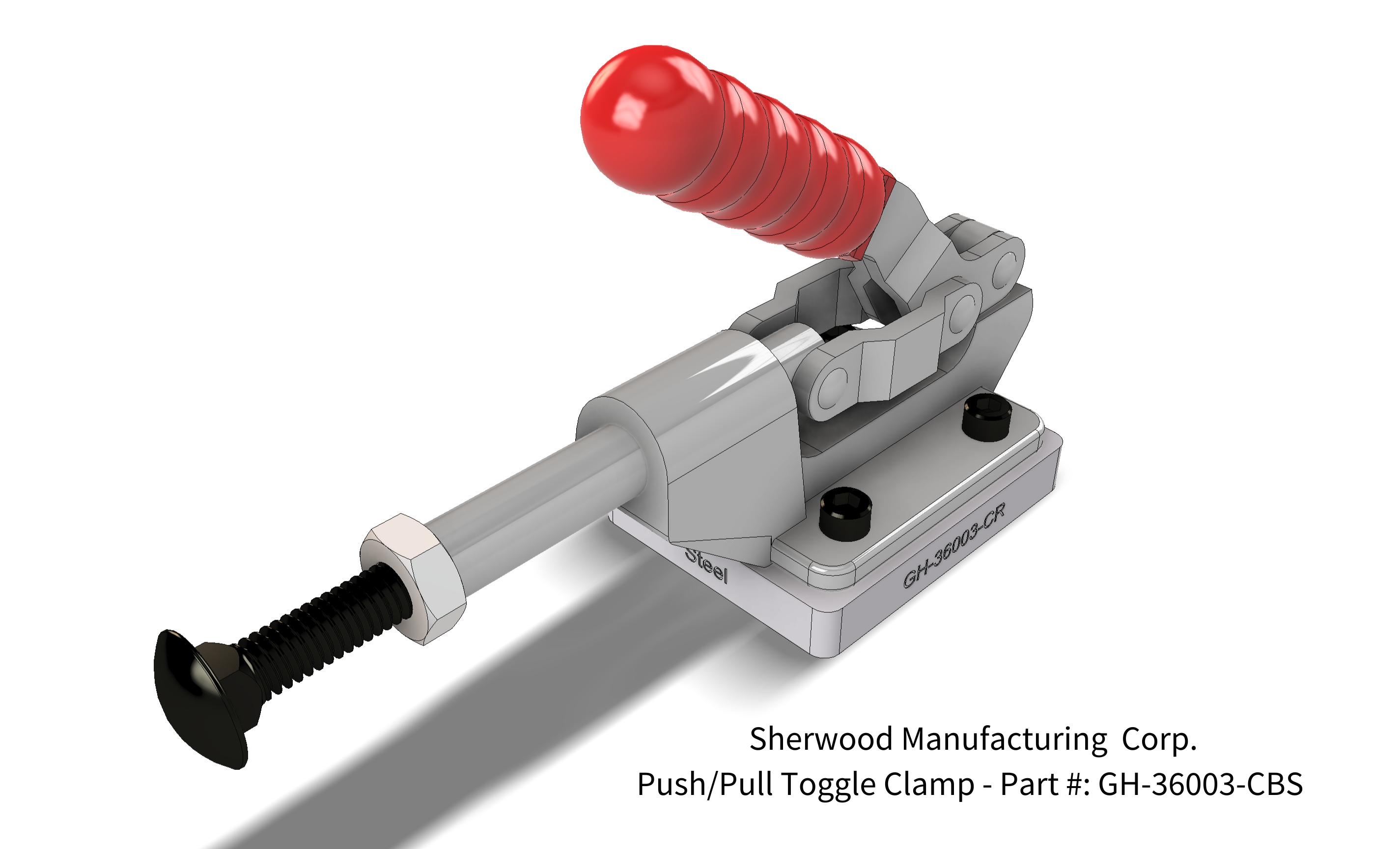

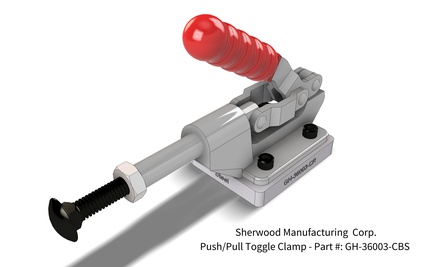

GH-36003-CBS

Part #: GH-36003-CBS

Designed for metal working.

Includes:

• Push/Pull Clamp (GH-36003)
• Mounting Block (GH-36003-CR (Steel))
• Carriage Bolt
• Jam Nut

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Weld the mounting block in place
• And you are good to go!

If you are done with the job, you can take the clamps off and reuse them on another fixture.  All you would need is another Mounting Block (GH-225D-CR (Steel) or AL (Aluminum))

We find this best to use with parts that get very hot or need to be held with more force.

Specifications:

• Low profile plunger clamp, locks in extended or retracted position
• 1-1/4" plunger travel
• 600 lbs holding capacity
• Oil and Stain resistant red hand grips
