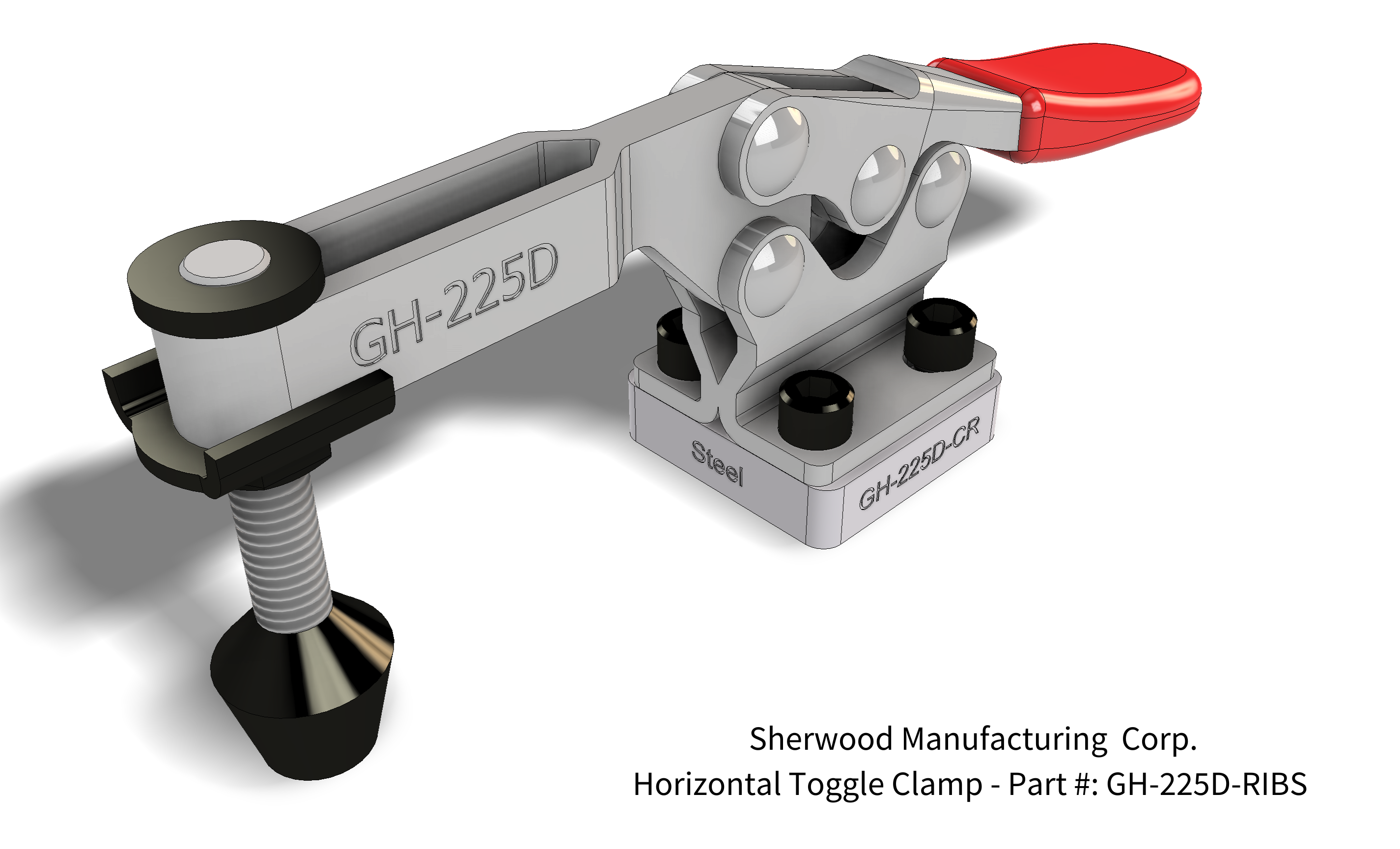

GH-225D-RIBS

Part #: GH-225D-RIBS

Designed for woodworking or metalworking.

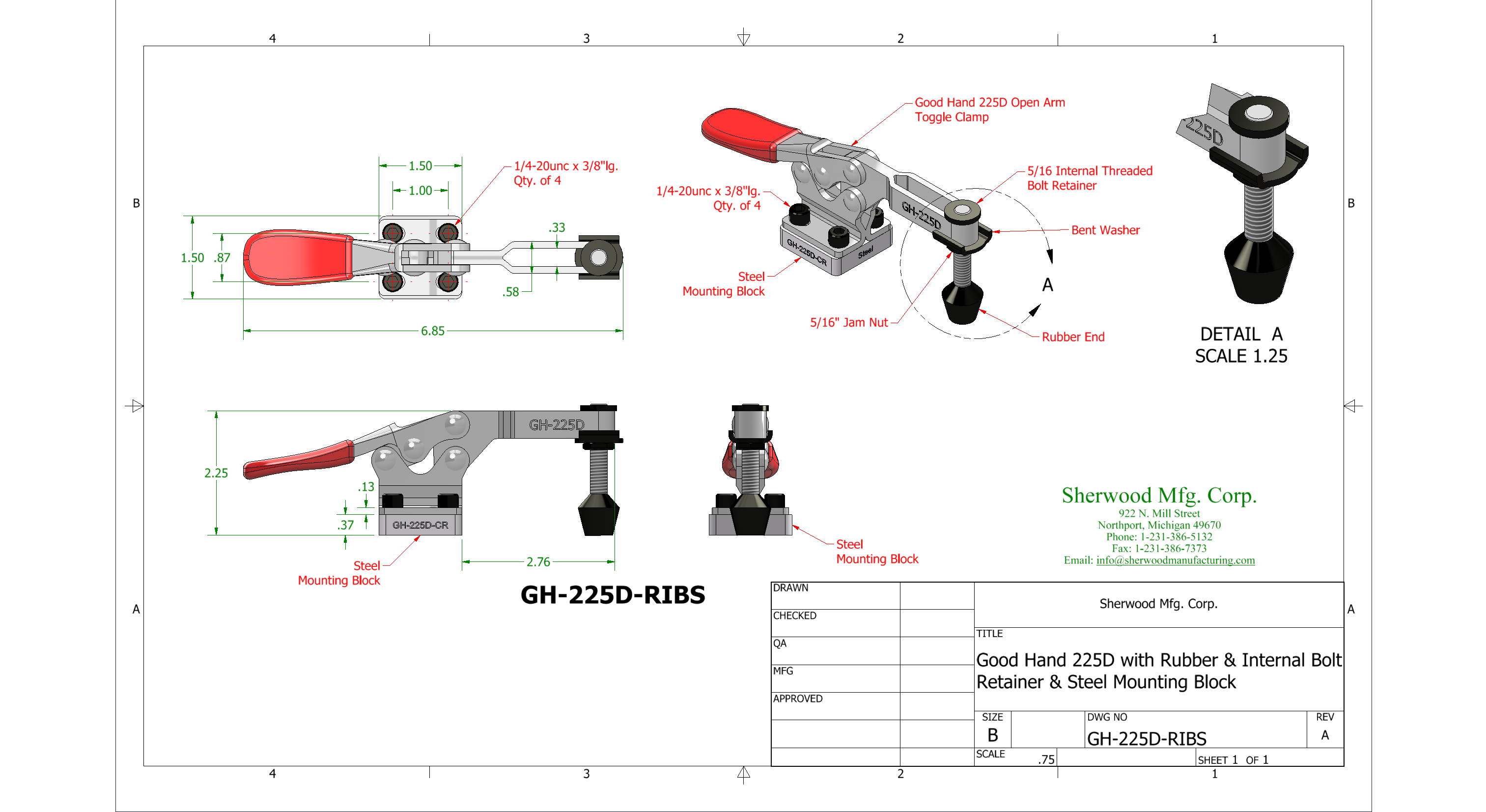

Includes:

• Horizontal Clamp (GH- 225D)
• Mounting Block (GH-225D-CR (Steel))
• 5/16" Alum. Thru Knob
• 5/16"  Internal Threaded Bolt Retainer
• Bent Washer
• Nut
• Rubber Spindle

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Weld the mounting block in place
• And you are good to go!

*If you are done with the job, you can take the clamps off and reuse them on another fixture.  All you would need is another Mounting Block (GH-225D-CR (Steel) or AL (Aluminum)

We find this best to use with parts that do not get very hot or if the part just needs to be held in place.

Specifications:

• 500 lbs. Holding Capacity
• Horizontal  Handle.
• Weight: .059 lbs.

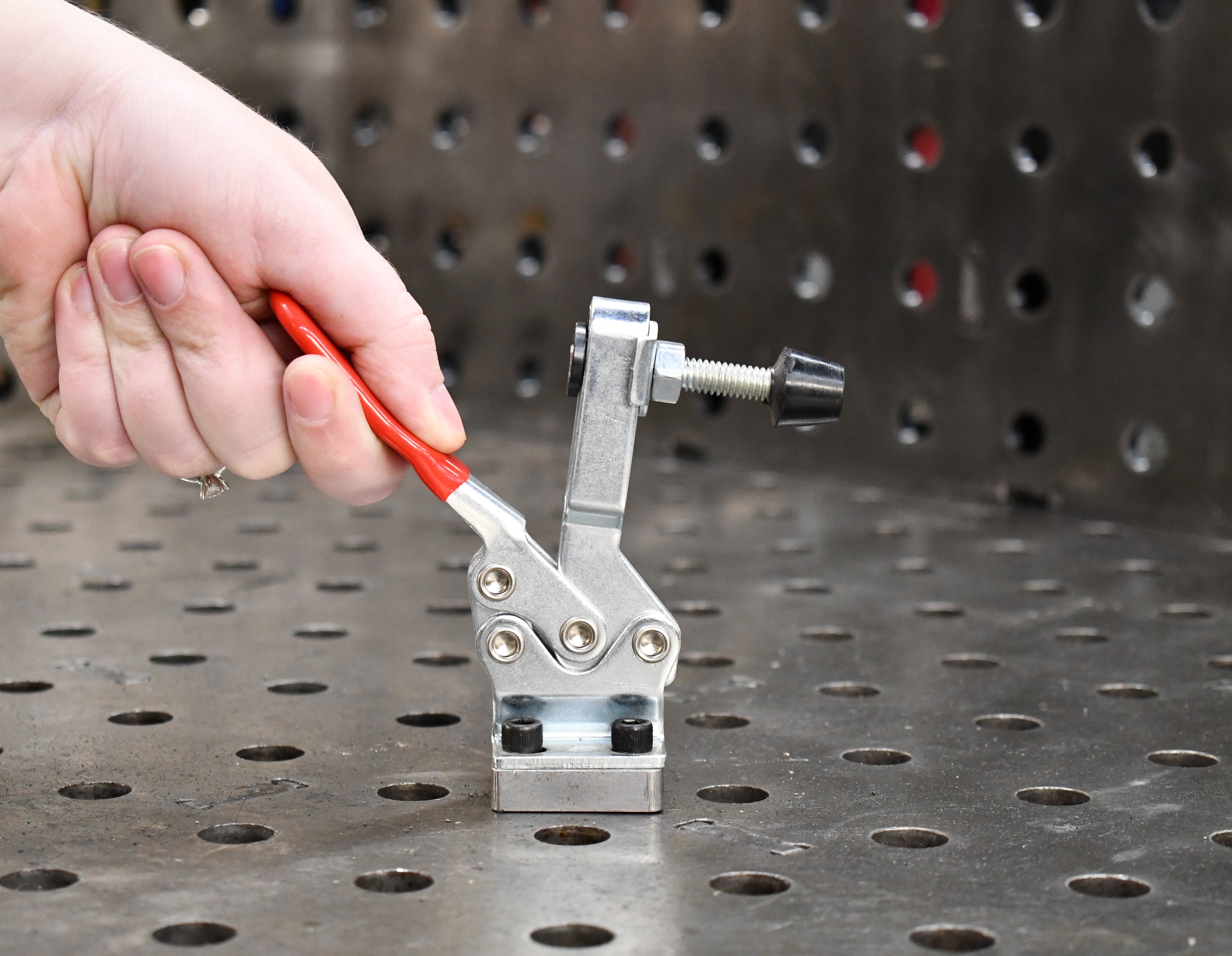

• Bar opens: 90  deg., Handle 65 deg.
• 5/16” Open Arm or U-Bar , Style of Toggle Clamp.
• Flanged Base for easy Bolt on application.
