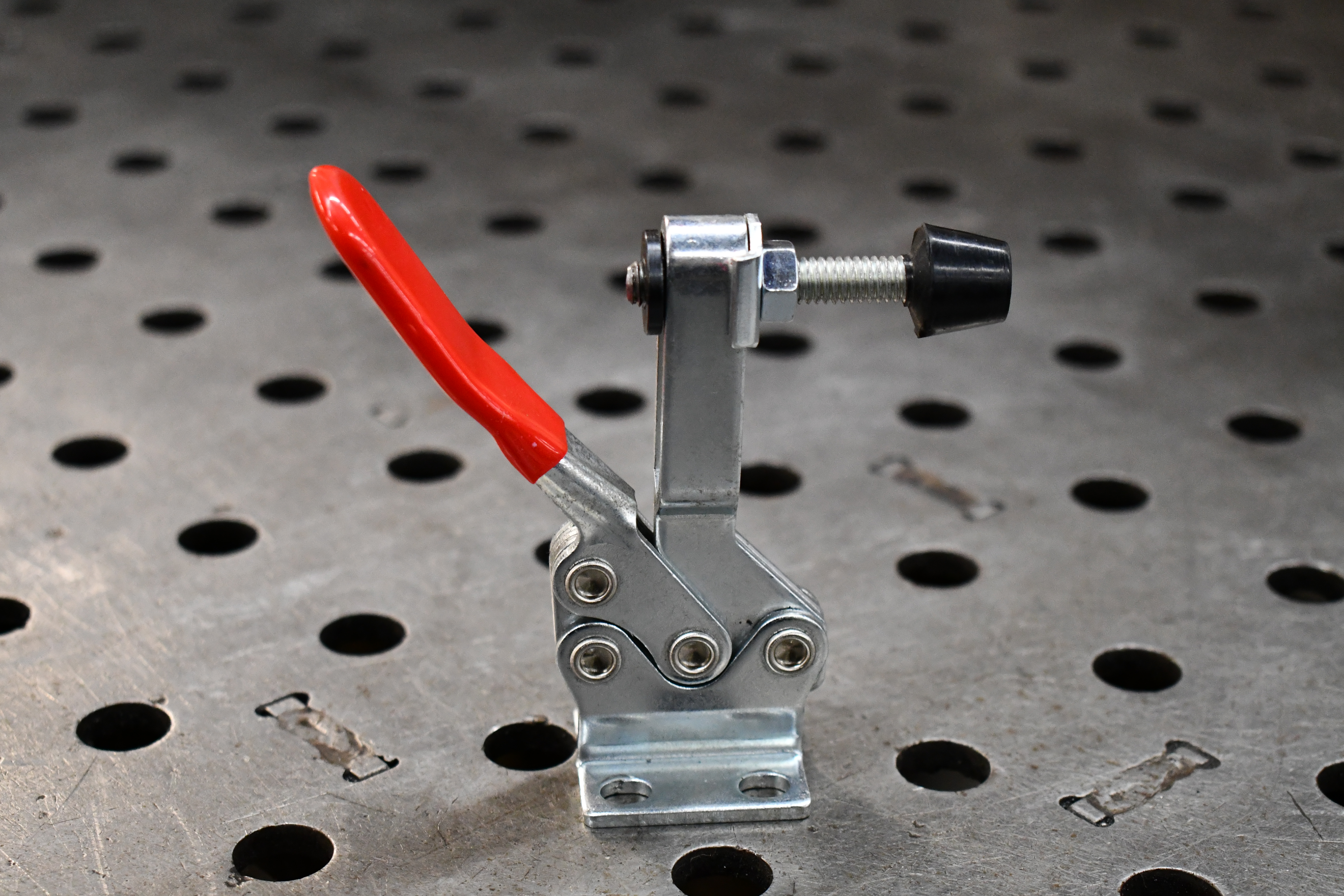

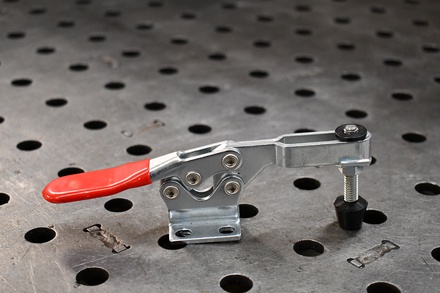

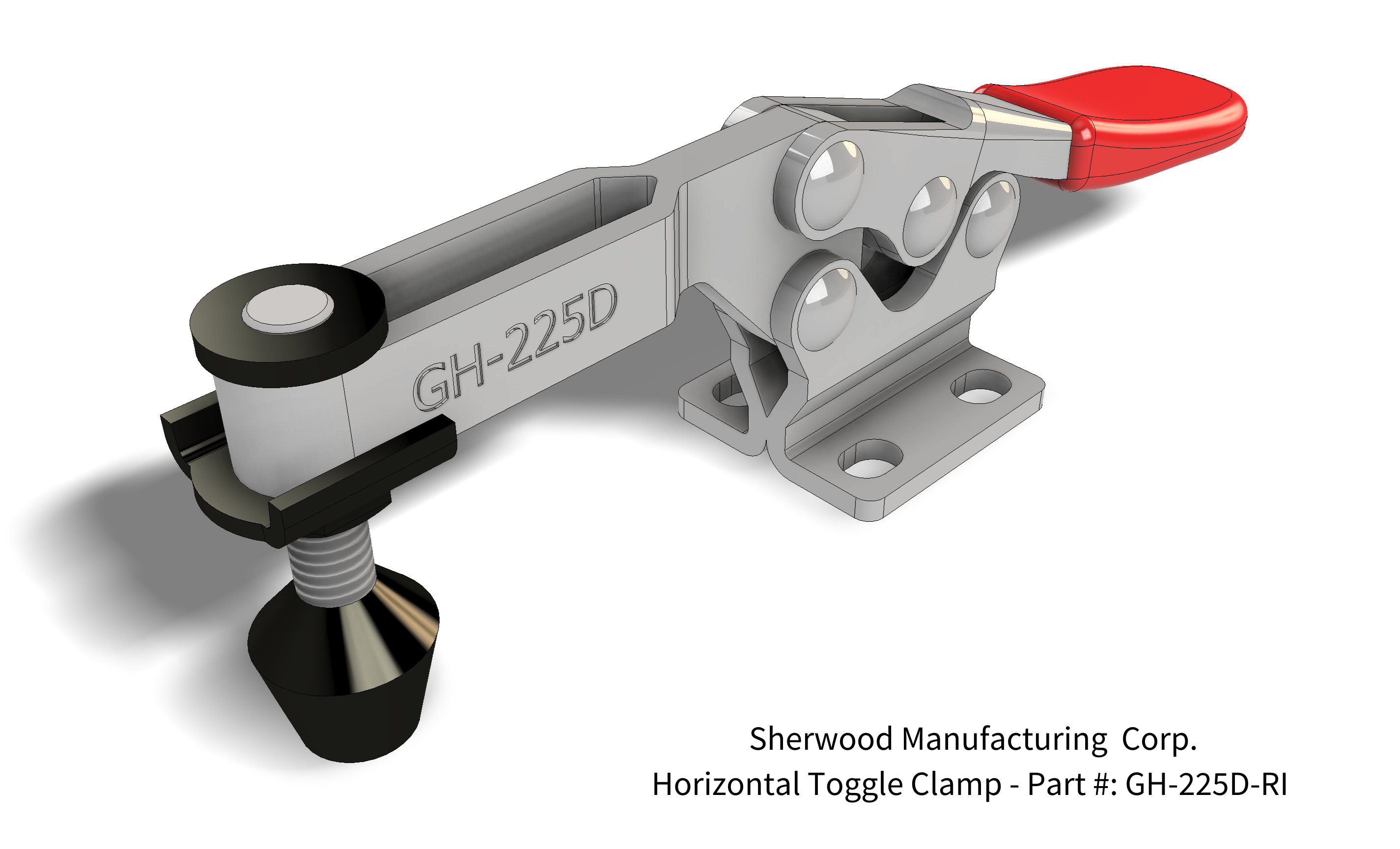

GH-225D-RI

Part #: GH-225D-RI

*If you plan to use this clamp for metalworking see our GH-225D-RIBS for a clamp and mounting block assembly allowing you to use this clamp on multiple fixtures thanks to our patented mounting block.

Designed for woodworking or metalworking.

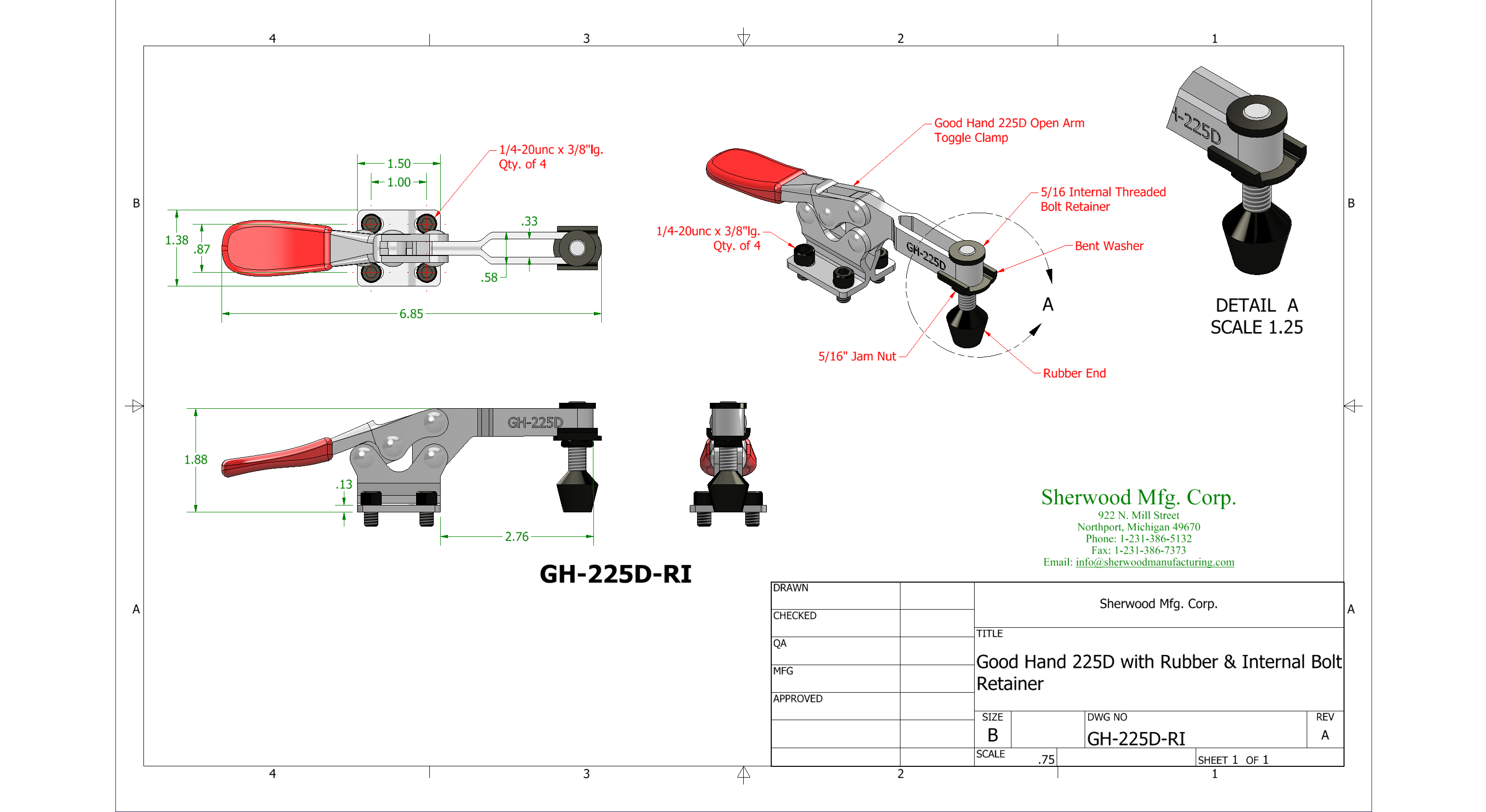

Includes:

• Horizontal Clamp (GH- 225D)
• 5/16" Alum. Thru Knob
• 5/16"  Internal Threaded Bolt Retainer
• Bent Washer
• Nut
• Rubber Spindle

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Bolt in position
• Cut flush with the Internal Threaded Bolt Retainer so that it doesn’t hit you in the back of the hand.
• And you are good to go!

We find this best to use with parts that do not get very hot or if the part just needs to be held in place.

Specifications:

• 500 lbs. Holding Capacity
• Horizontal  Handle.
• Weight: .059 lbs.
• Bar opens: 90  deg., Handle 65 deg.
• Open Arm or U-Bar , Style of Toggle Clamp.
• Flanged Base for easy Bolt on application.
