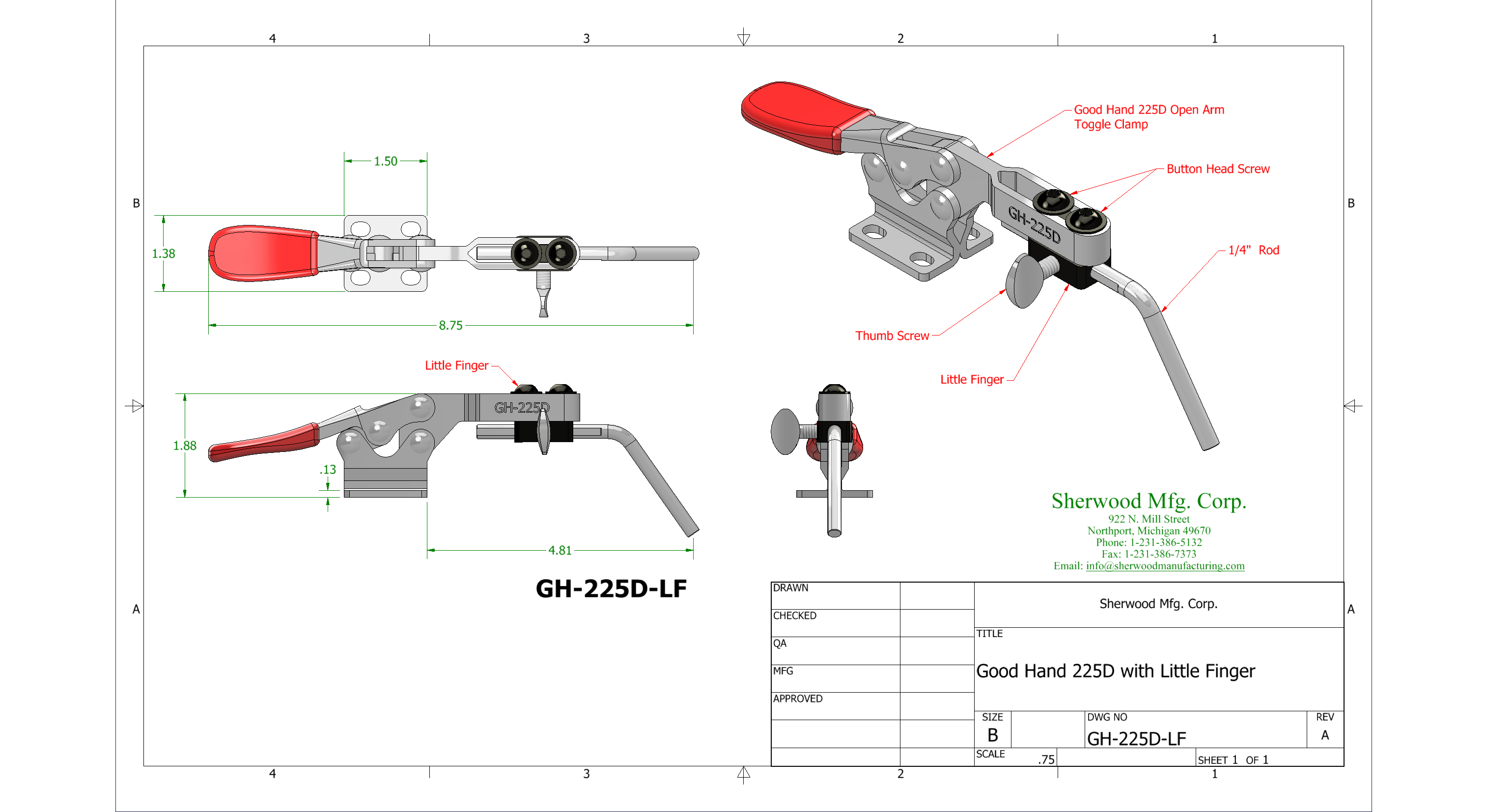

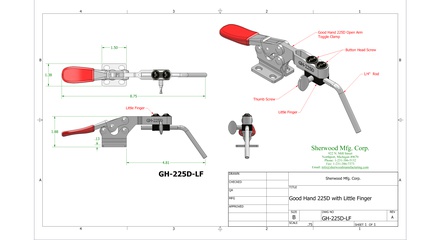

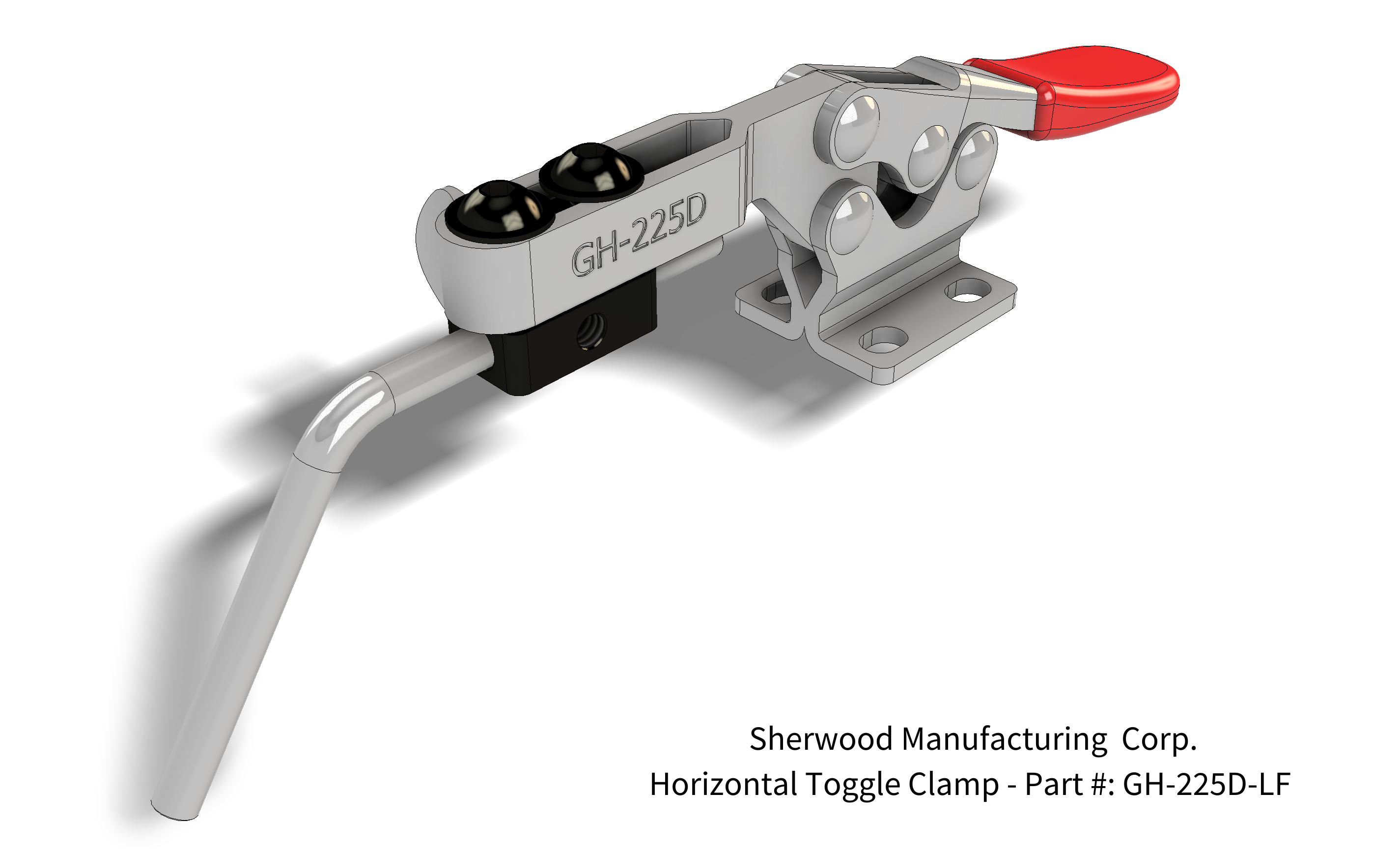

GH-225D-LF

Part #: GH-225D-LF

*If you plan to use this clamp for metalworking see our GH-225D-LFBS for a clamp and mounting block assembly allowing you to use this clamp on multiple fixtures thanks to our patented mounting block.

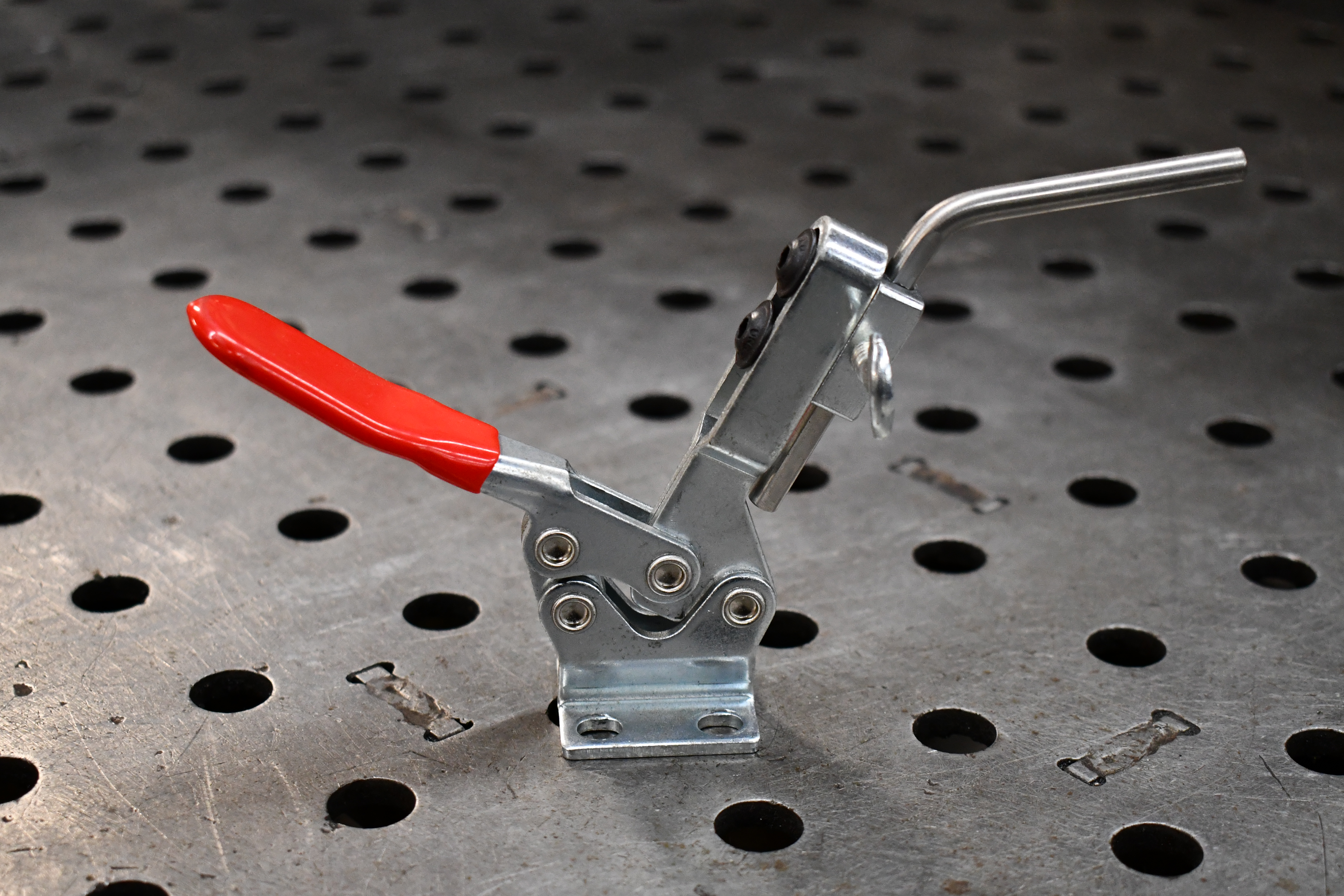

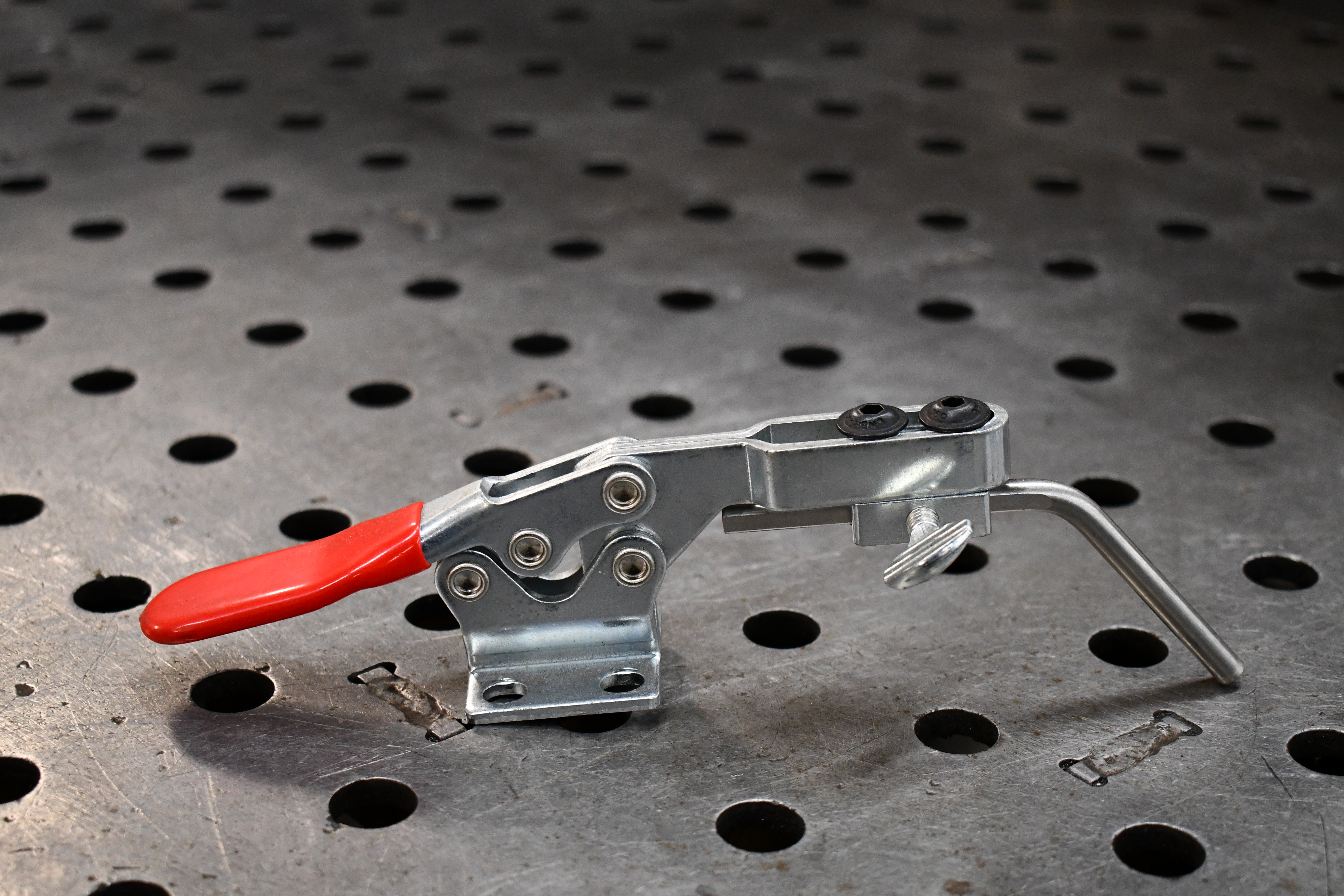

Wrench free. Designed to hold in hard to reach places or to hold smaller parts for metalworking.

Includes:

• a Horizontal Clamp (GH- 225D)
• and the “Little Finger” (5/16" LF)

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Bolt into position
• And you are good to go!

*We find this best to use with small parts or when you need to get into a small space but give room for welding.

Specifications:

• 500 lbs. Holding Capacity
• Horizontal  Handle.
• Weight: .059 lbs.
• Bar opens: 90  deg., Handle 65 deg.
• 5/16” Open Arm or U-Bar , Style of Toggle Clamp.
• Flanged Base for easy Bolt on application.
