GH-225D-CK

Part#:  GH-225D-CK

*If you plan to use this clamp for metalworking see our GH-225D-CKBS for a clamp and mounting block assembly allowing you to use this clamp on multiple fixtures thanks to our patented mounting block.

Wrench Free, designed for metalworking.

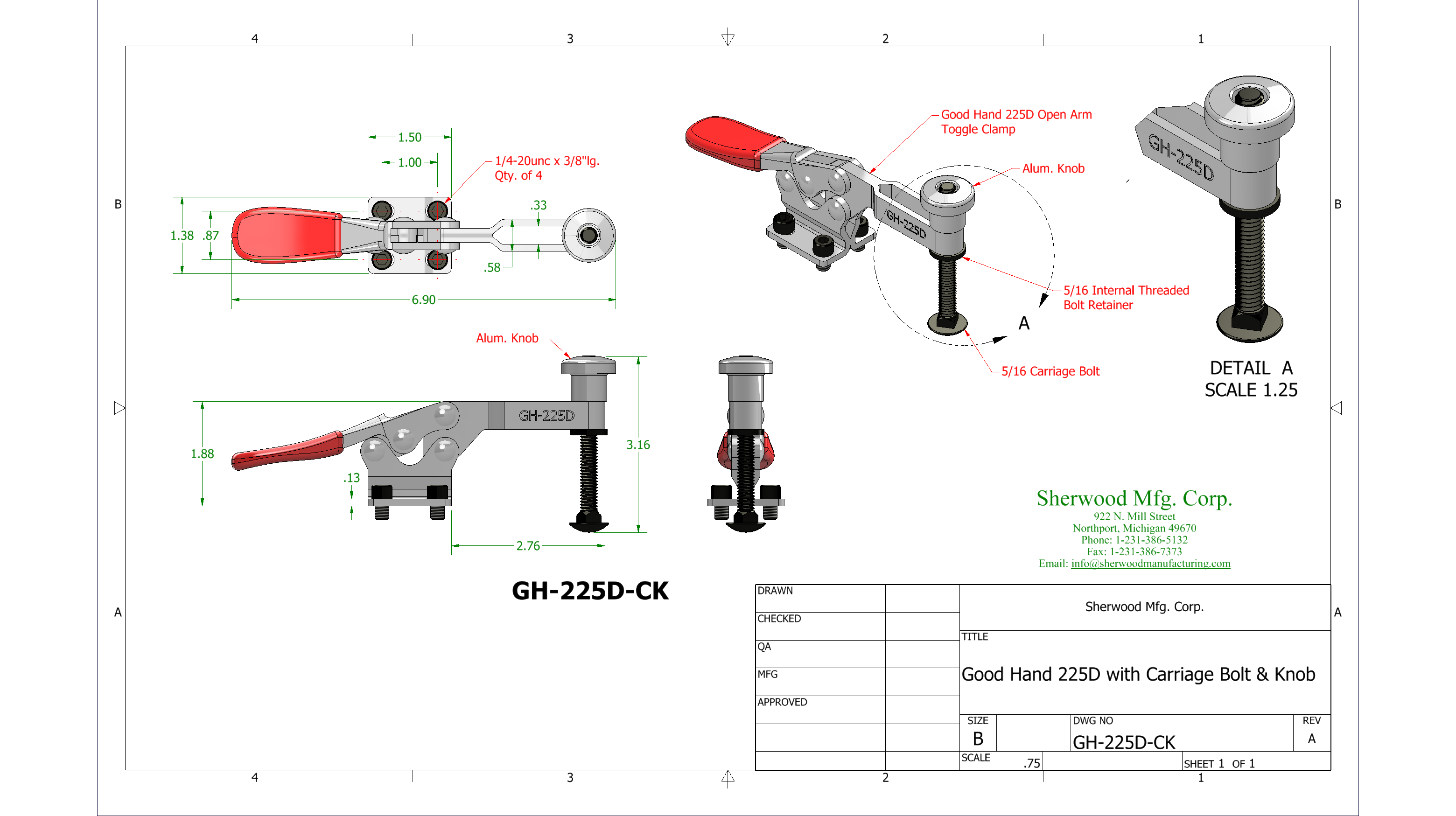

Includes:

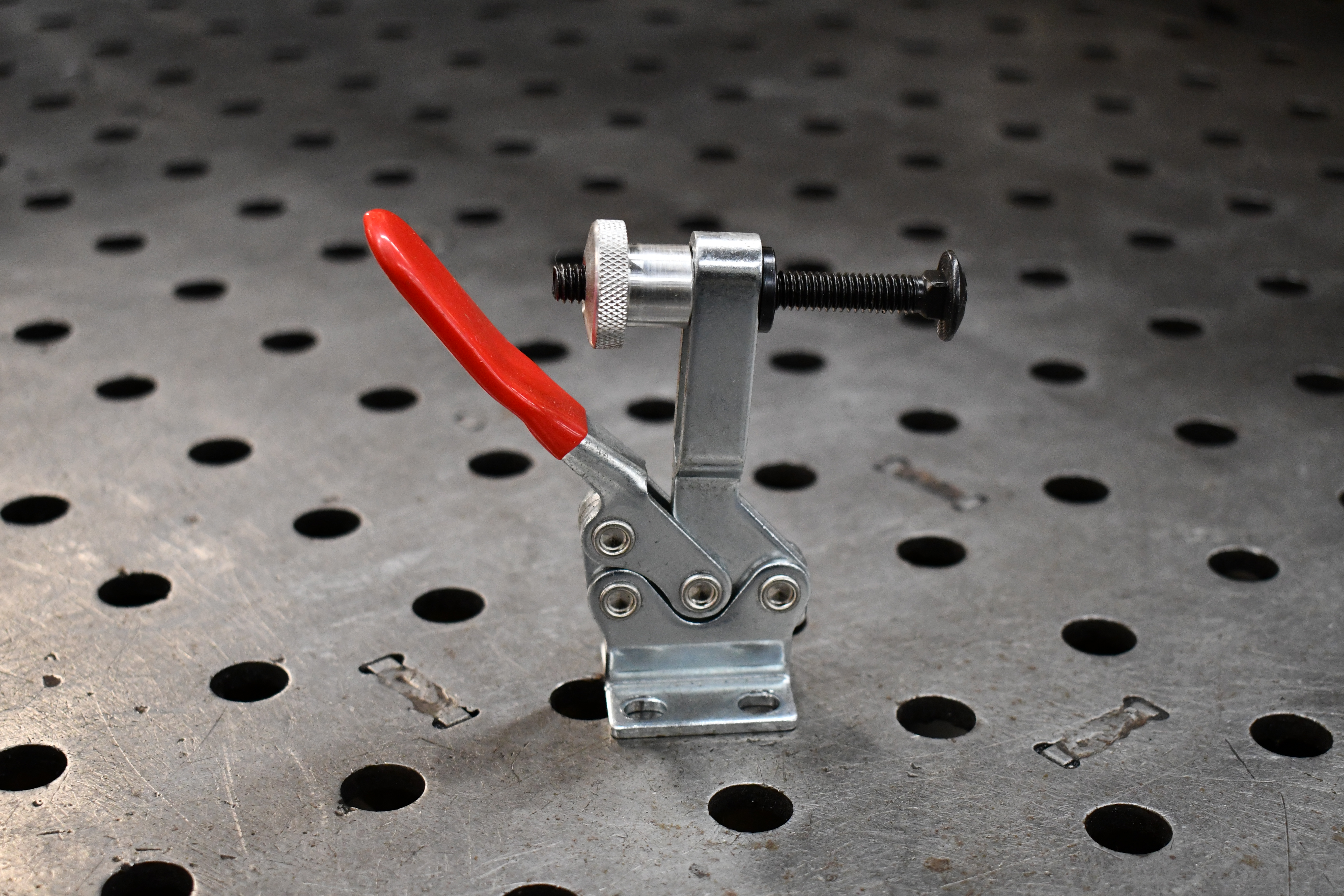

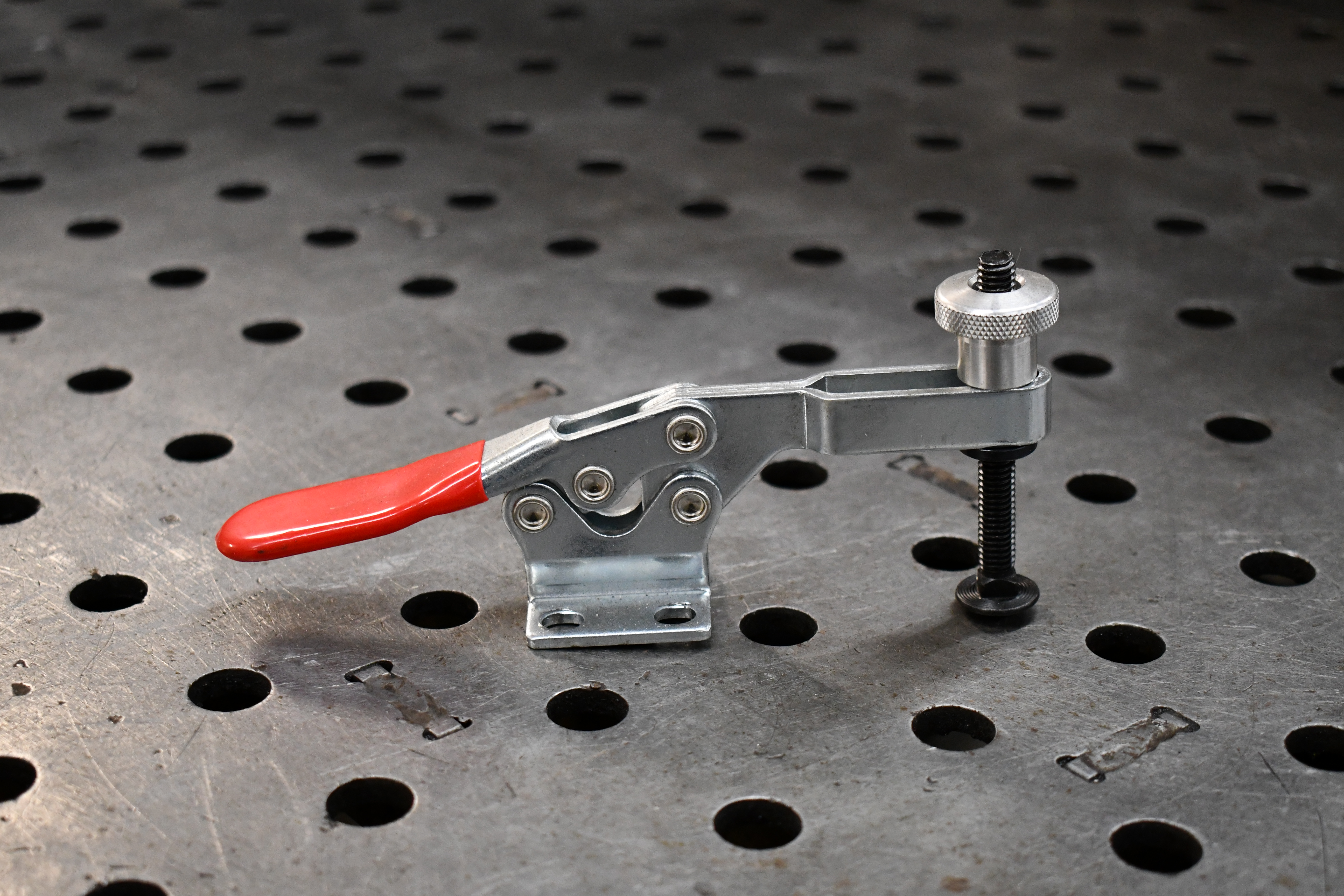

• Horizontal Clamp (GH-225D)
• 5/16" Alum. Thru Knob
• 5/16"  Internal Threaded Bolt Retainer
• 5/16” x 3.00lg. Carriage Bolt
• Great for Welding Fixtures , Check Fixtures , Assembly Fixtures , and the list goes on.

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Bolt in position
• And you are good to go!

*We find this best to use with parts that get very hot or need to be held with more force.

Specifications:

• 500 lbs. Holding Capacity
• Horizontal  Handle.
• Weight: .059 lbs.
• Bar opens: 90  deg., Handle 65 deg.
• 5/16" Open Arm or U-Bar , Style of Toggle Clamp.
• Flanged Base for easy Bolt on application.
