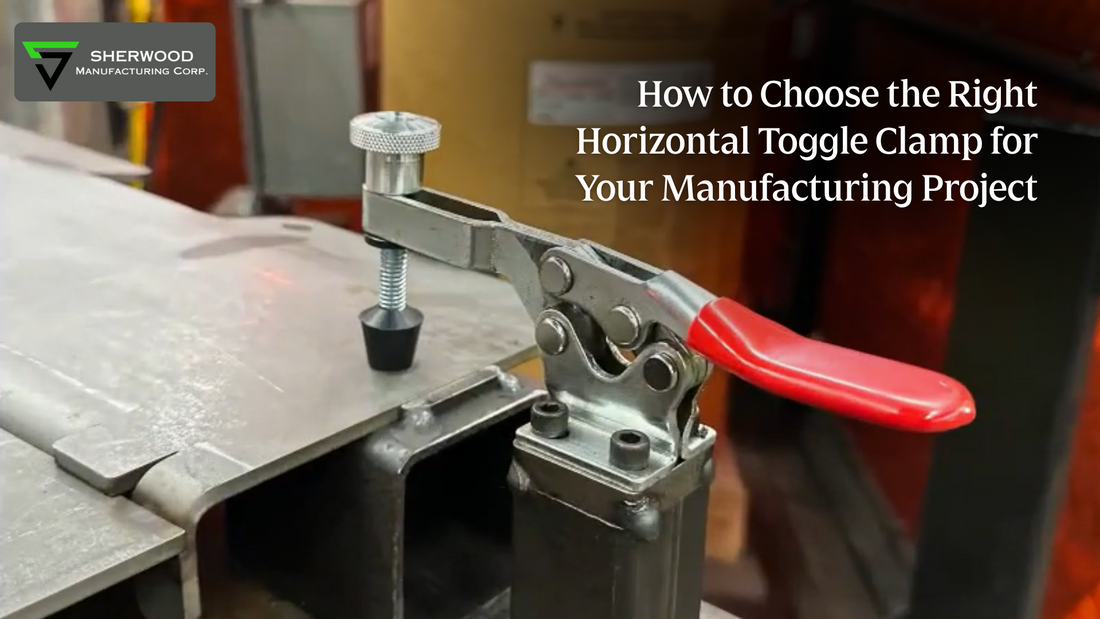

How to Choose the Right Horizontal Toggle Clamp for Your Manufacturing Project

When it comes to precision and safety in U.S. manufacturing, one tool that often makes a big difference is the horizontal toggle clamp. Whether you are working in woodworking, automotive, aerospace, or even small-scale custom fabrication, choosing the right clamp can save time, improve consistency, and reduce costly mistakes. With so many variations available, finding the best fit for your project can feel overwhelming. This guide will walk you through everything you need to know about horizontal clamps, from features and applications to how to select the right one for your specific needs.

Before diving in, you should explore the unique collection of horizontal toggle clamps available at Sherwood Manufacturing. Their range of different toggle clamp attachments are designed to meet the needs of American manufacturers who prioritize durability and efficiency.

What Is a Horizontal Toggle Clamp?

A horizontal toggle clamp is a tool that secures workpieces firmly in place during cutting, welding, drilling, or assembly. The handle of the clamp is  parallel to the base when locked, which is where the “horizontal” part comes from. Unlike vertical clamps, these keep a lower profile, making them useful when you need clearance above the work surface.

Horizontal hold down clamps are popular because:

• They provide strong, steady pressure.
• They reduce movement and vibration during operations.
• They are safer for repetitive tasks in manufacturing.

When you’re working on precision-heavy projects, even a small shift in a workpiece can throw off alignment. That’s why clamps like the GH-225D-RIBS exist to hold materials firmly without damaging them.

Why Choosing the Right Clamp Matters

In manufacturing, using makeshift or unsuitable clamps can lead to misalignment, wasted materials, and additional rework. Reliable horizontal clamps, such as the GH-225D-RKBS from Sherwood Manufacturing, provide precise horizontal pressure that ensures consistent results every time.

Pairing your clamp with a Sherwood attachment adds versatility, allowing you to easily adapt the same clamp for different materials, angles, or assembly setups. Whether you’re working on light fabrication, precision welding, or custom assembly, Sherwood’s range of attachments ensures that your horizontal clamp fits the specific job you need it for.

These clamps improve workflow efficiency by securely holding workpieces during welding, cutting, or assembly. By investing in high-quality clamps, manufacturers can save time, reduce material waste, and maintain high standards of quality and safety. Choosing the right horizontal clamp is therefore not just a matter of convenience—it’s a critical factor in achieving accuracy, productivity, and long-term reliability.

Horizontal vs. Vertical Toggle Clamps

One of the most common questions manufacturers in the U.S. ask is: “Should I use a horizontal clamp or a vertical clamp?”

Here’s a simple answer:

• Horizontal toggle clamps: Best when you need the handle to stay low and out of the way. They are excellent for tight spaces or when you want a clear work area above the material.
• Vertical toggle clamps: Better for applications where downward pressure is needed from above. These are often used when space around the clamp isn’t a concern.

So, if your manufacturing project involves tasks like drilling or welding where the top clearance matters, a horizontal toggle clamp is the smarter choice.

Key Features to Look For

When buying a horizontal hold down clamp, here are the most important factors to consider:

1. Holding Capacity
   How much force can the clamp handle? For heavy-duty U.S. manufacturing jobs, always check the load rating.
2. Material Quality
   Steel-bodied clamps like the GH-225D-CK provide strength and durability for long-term use.
3. Ease of Use
   A smooth handle mechanism means less operator fatigue.
4. Size and Clearance
   Make sure the clamp fits within your setup and provides enough clearance for your work.
5. Durability
   Clamps used in American manufacturing often face repeated use, so they should resist wear and tear.

How Do Horizontal Toggle Clamps Work?

Horizontal toggle clamps are designed to hold workpieces securely in place with minimal effort. They operate using a simple lever and pivot mechanism: when you push the handle down, the clamp arm moves horizontally to press the workpiece against a fixed surface. This action locks the clamp in place, providing a firm hold that won’t shift during cutting, welding, or assembly.

The unique toggle mechanism also creates a mechanical advantage, meaning you can apply a strong clamping force without excessive hand effort. Open-armed horizontal toggle clamps feature adjustable arms or hold-down points, allowing you to fine-tune the pressure depending on the material or project.

Because the clamping motion is horizontal, these clamps are ideal for projects where vertical space is limited or where precise lateral pressure is required. They are widely used in woodworking, metal fabrication, and assembly lines because they combine speed, reliability, and repeatable performance.

For manufacturers looking for high-quality solutions, Sherwood Manufacturing offers a wide range of horizontal toggle clamp attachments that are durable, adjustable, and built to maintain consistent pressure throughout repetitive tasks.

Step-by-Step: How to Choose the Right Horizontal Clamp

1. Identify Your Project Needs

Decide if your project is light woodworking or heavy-duty welding. The clamp should match the load. For reliable performance, consider options like the GH-225D-LFBS that provide consistent horizontal pressure.

2. Measure Space and Clearance

Ensure the clamp’s handle moves freely without interfering with other tools or workpieces. Proper clearance keeps operations smooth and safe.

3. Check Material Compatibility

Use clamps with non-marring tips for delicate surfaces. Sherwood’s clamps are adjustable to safely hold wood, metal, and composite materials.

4. Decide on Capacity

Match the clamp’s holding force to your project. Too weak = slippage, too strong = cumbersome. The GH-225D-RKBS is great for medium to heavy-duty tasks.

5. Think About Longevity

Choose durable, corrosion-resistant clamps for repeated use. High-quality clamps save time, reduce replacements, and keep workflow consistent. Sherwood’s steel mounting blocks extend the life of your clamp by removing the need to weld your clamp in place.

For more details, check out Sherwood Manufacturing’s guide on boosting efficiency with horizontal toggle clamps.

Common Questions About Horizontal Toggle Clamps

What are horizontal toggle clamps used for in U.S. factories?

They are used to hold workpieces securely during machining, welding, drilling, or assembly, reducing errors and improving consistency.

Which industries benefit most from horizontal clamps?

Industries like woodworking, automotive, aerospace, and custom fabrication in the U.S. benefit the most due to the need for accuracy and efficiency.

Are horizontal hold down clamps better than vertical ones?

Not always, it depends on the job. Horizontal clamps are better for low-clearance projects, while vertical clamps are useful when overhead space is available.

How do I know which clamp size to choose?

Look at your workpiece size and the clamp’s load capacity. Always pick a clamp that matches the scale of your project.

What’s the best way to maintain horizontal toggle clamps?

Keep them clean, lubricate the moving parts, and inspect regularly for wear to ensure they last longer.

The U.S. Market Perspective

In the U.S., manufacturers are under pressure to deliver faster while keeping costs down. Horizontal clamps are a small but powerful solution. By reducing errors and boosting workflow efficiency, they help American manufacturers stay competitive.

Sherwood Manufacturing has seen growing demand for horizontal clamps as more companies recognize their value. U.S. businesses, both large and small, are turning to reliable clamp solutions that stand the test of time.

Conclusion

Choosing the right horizontal toggle clamp for your manufacturing project comes down to understanding your needs, space, and workload. From woodworking shops to manufacturing companies in the U.S., the right clamp can mean the difference between wasted effort and perfect precision.

If you’re ready to upgrade your processes, you can explore Sherwood’s range of horizontal open-armed toggle clamps designed to support American manufacturers with strength, accuracy, and reliability.
